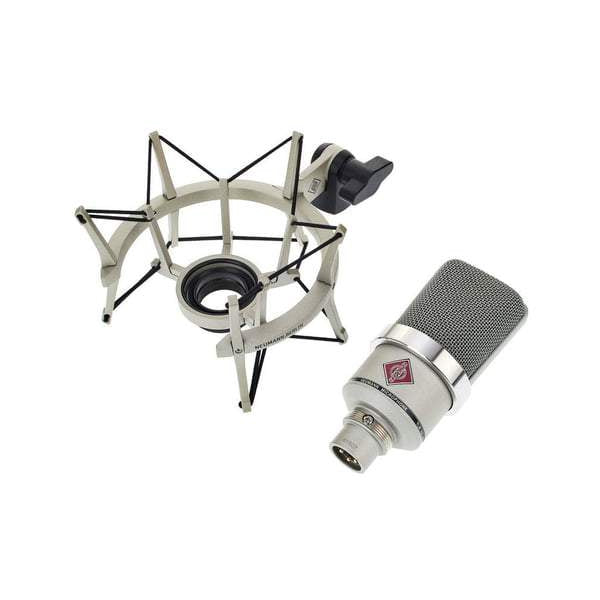

Neumann TLM 102 Studio Set

Overview

Record In Stereo With Confidence With a Neumann TLM 102 Studio Set Cardioid Condenser Microphone With Mount - Nickel

The reduced overall size contributes to an exceptionally compact appearance, which unites all of the typical design components of a Neumann microphone. The harmonious proportions and gleaming grille ring ensure that even at first glance, the TLM 102* attracts attention.

The Neumann TLM 102 is impressive in terms of sound: In the interior is a newly developed large-diaphragm capsule (cardioid) with a maximum sound pressure level of 144 dB, which permits the recording of percussion, drums, amps, and other very loud sound sources, for example. Instruments that are not especially loud also benefit from the very fast transient response of the TLM 102. However, its most important applications are in the realm of vocals and speech; a slight boost above 6 kHz provides for excellent presence of the voice in the overall mix. Up to 6 kHz, the frequency response is extremely linear, ensuring minimal coloration and a clearly defined bass range. The capsule has an elastic suspension for the suppression of structure-borne noise. A pop screen integrated into the grille serves to suppress plosives in vocal and speech recording.

Due to its price and flexible field of application, The Neumann TLM 102 is ideal for the home recording and project studio sector, as well as for the broadcasting area, especially when clear lines of sight to the speakers are a priority.

The Studio Set includes a TLM 102 Microphone and an EA4 Suspension mount.

Key features

• Handles up to 144 dB SPL Distortion-Free
• 8 to 12 kHz Treble Boost for Brilliance
• Large-Diaphragm Condenser Capsule
• Transformerless Output Stage
• Resistant to EMI
• Shockmount and Stand Mount
• Integrated Pop Shield
• 48V Phantom Powered

Specifications

• Acoustical operating principle Pressure gradient transducer
• Directional pattern Cardioid
• Frequency range 20 Hz-20 kHz
• Sensitivity at 1 kHz into 1 Kohm 11 mV/Pa
• Rated impedance 50 ohms
• Rated load impedance 1 Kohms
• Equivalent noise level, CCIR 21 dB
• Equivalent noise level, A-weighted 12 dB-A
• Signal-to-noise ratio, CCIR (rel. 94 dB SPL) 73 dB
• Signal-to-noise ratio, A-weighted (rel. 94 dB SPL) 82 dB
• Maximum SPL for THD 0.5% 144 dB
• Maximum output voltage 13 dBu
• Supply voltage (P48, IEC 61938) 48 V ± 4 V
• Current consumption (P48, IEC 61938) 3.5 mA
• Matching connector XLR3F
