Regular price Rp. 3.325.000,00 Rp. 2.660.000,00 Sale

Overview

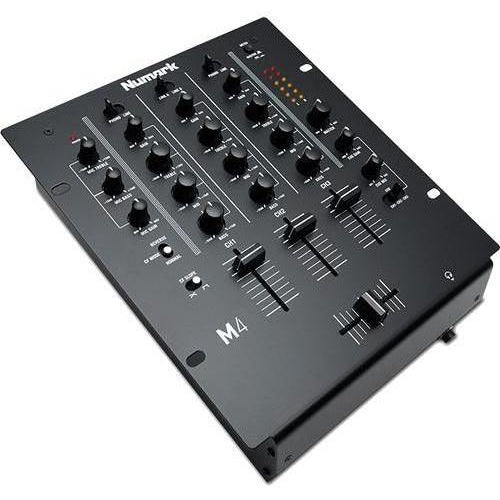

M4 is a three-channel tabletop mixer designed for any DJ who needs maximum flexibility. It features a replaceable crossfader with reverse and slope controls, a 1/4" microphone input with EQ, and plenty of routing for phono and line level devices. Where M4 really shines is its impressive input section.

Two switchable phono/line inputs plus four more dedicated line inputs give you a total of SIX inputs! Add Master and Record outputs, and steep three-band EQ/rotary kills on each channel, and you've a powerhouse package that's ready to handle whatever the gig throws at you. M4 has the inputs, controls, and features to turn what would be a problem for the average mixer into a simple plug-in. Don't get stuck without enough inputs at your next gig. Upgrade to M4 – you'll be glad you did!

Key features
  • Inputs: two phono/line switchable (RCA), four line (RCA), mic (1/4")
  • Outputs: Master (RCA), Record (RCA), headphone (1/4" stereo)
  • Steep three-band EQ/rotary kills on each channel
  • Microphone input with EQ
  • Six-segment LED display for monitoring signal strength
  • Toggle for master and PFL metering
  • Replaceable crossfader with reverse and slope control
Specifications

Inputs

  • Line: 10K ohm input impedance; 80mV RMS sensitivity for 0dB output
  • Mic: 600 ohm input impedance unbalanced; 1.5mV RMS sensitivity for 0dB output; 400mV RMS max input
  • Phono: 47k ohm input impedance; 1.3mV RMS sensitivity @ 1kHz for 0dB output

Outputs

  • Line: 7V RMS max
  • Headphone: 0.5W into 47ohm

Signal to Noise Ratio
(maximum output JIS-A weighted)

  • Line: Better than 100dB
  • Mic: Better than 95dB
  • Phono: Better than 85dB

Frequency response

  • Line: 20 – 20,000 Hz ±0.5dB
  • Mic: 20 – 15,000 Hz ±0.5dB
  • Phono: ±1dB; -3dB attenuation at 20 Hz to reduce rumble and feedback

Channel Equalizer

  • Bass: +12 / -35dB at 20 Hz
  • Mid: +12 / -25dB at 1.3 kHz
  • Treble: +12 / -20dB at 15 kHz

Channel fader kill

  • Better than 90dB at 1 kHz

Crossfader kill

  • Better than 75dB

Crosstalk

  • Better than 80dB at 1 kHz

Distortion

  • Less than 0.05%

Item Weight

  • 5 pounds

Product Dimensions

  • 9.6 x 12 x 4 inches

Shipping Weight

  • 7.9 pounds
