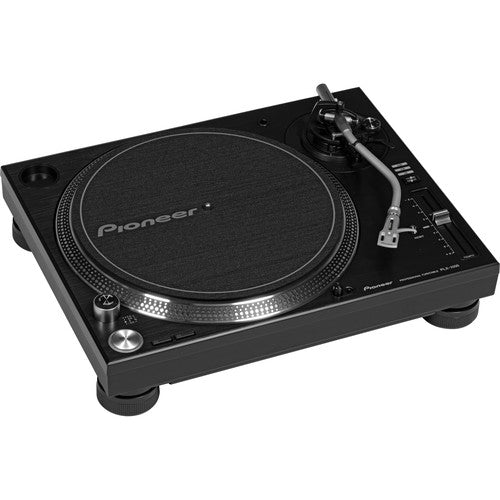

PLX-1000
Professional direct drive turntable
A reborn classic
The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables.
Specifications
Expand / Collapse all
Accessories
|
- PLX-1000
- Power cord
- Audio cable
- Ground wire
- Adapter for EP record
- Turntable sheet
- Slip mat and sheet

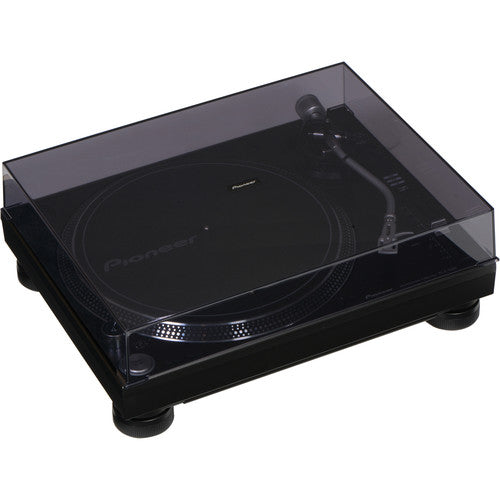

- Dust cover
- Head shell
- Balance, sub and shell weights
- Operating instructions
|
Width
|
453 mm |
Height
|
159 mm |
Depth
|
353 mm |
Weight
|
14.6 kg |
Drive Method
|
Quartz lock, servo-type, direct drive |
Turntable
|
Aluminium, die-casting diameter: 332 mm |
Motor
|
3-phase, brushless DC motor |
Braking System
|
Electronic brake |
Rotation Speed
|
33⅓ rpm, 45 rpm |
Rotation Adjustment Range
|
±8, ±16, ±50 % |
Wow and Flutter
|
0.1 % or less WRMS (JIS WTD) |
Signal-to-Noise Ratio
|
70 dB |
Starting Torque
|
> 4.5 kgf・cm |
Start Time
|
0.3 sec (at 33⅓ rpm) |
Arm Type
|
- Universal type S-shape tone arm
- Gimbal-supported type bearing structure
- Static balance type
|
Overhang
|
15 mm |
Effective Length
|
230 mm |
Tracking Error
|
Within 3° |
Height Adjustment Range
|
6 mm |
Stylus Pressure Variable Range
|
0-4 g (1 scale 0.1 g) |
Proper Cartridge Weight
|
2.5-12 g (includes mounting materials) |
