M-Audio BX5 D3
M-Audio BX5 D3

M-Audio BX5 D3

Regular price Rp. 2.000.000,00 Rp. 1.890.000,00 Sale

Overview

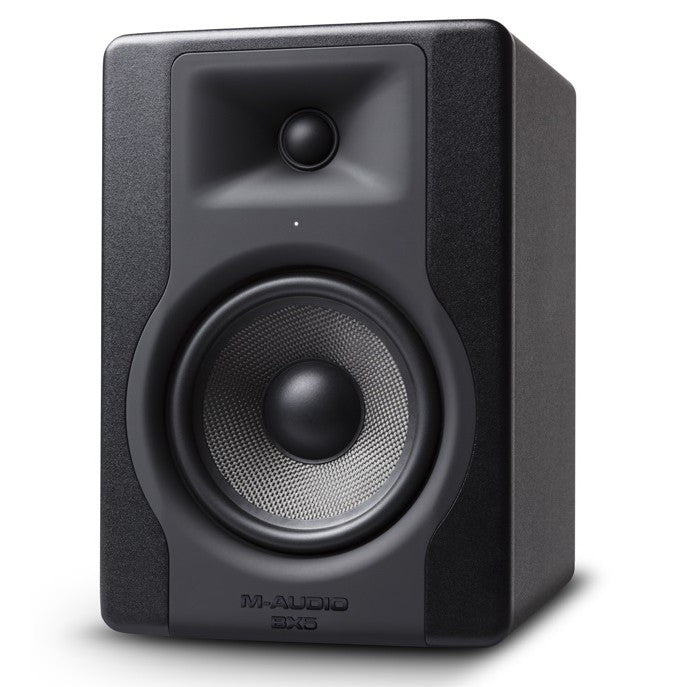

The BX5 D3 from M-Audio is a 2-way, 100W powered studio monitor designed to offer a wide frequency response and easy configuration for mixers, DJs, producers, and recordists in small control rooms, personal studios, and mobile rigs. The monitor produces a frequency response of 52 Hz to 35 kHz, thanks to two Class A/B amplifiers feeding a 5” Kevlar woofer and 1” silk dome tweeter.

A rear-mounted bass port delivers extended bass response, while the tweeter’s custom waveguide yields a wide sweet spot and minimized high-frequency scatter. Volume and low-frequency controls are provided so you can tune the monitor to cooperate with the sound of the room. Place the monitor on the supplied acoustic foam pad to decouple it from your table or stands, which aids in reducing unwanted bass vibrations.

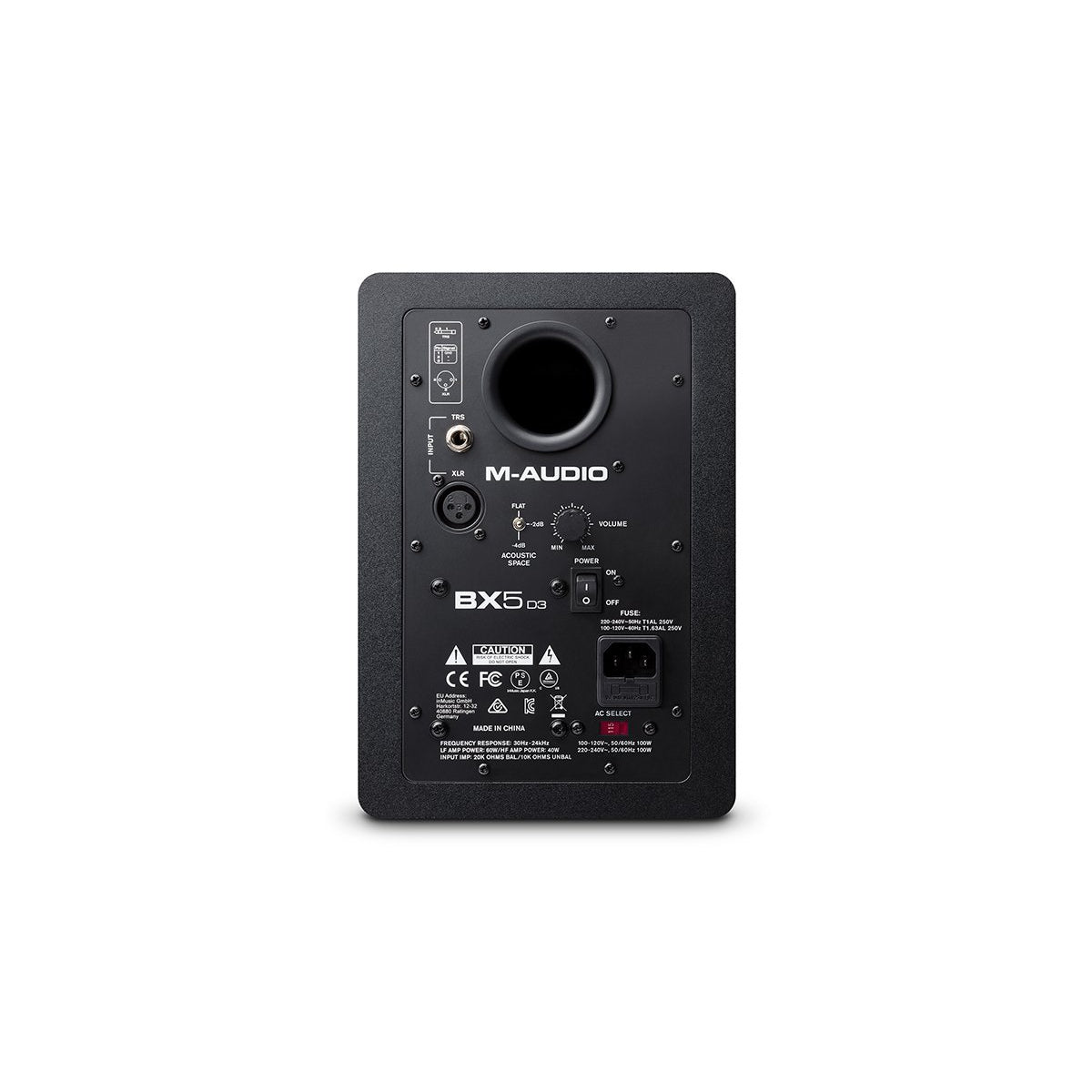

The BX5 D3 can interface with a variety of equipment, via balanced XLR and balanced/unbalanced 1/4” TRS input jacks. Setup is simple, due to the front-mounted LED, which appears brighter when you are at the ideal angle.

Key features
  • 5" Kevlar Woofer
  • 1" Silk Dome Tweeter
  • 100W Bi-Amped Power
  • 52 Hz to 35 kHz Frequency Response
  • Class A/B Amplifiers
  • Custom Waveguide
  • Volume and Low-End Controls
  • Rear Bass Port
  • XLR and 1/4" TRS Inputs
  • Includes Acoustic Foam Pad
Specifications
Type 2-way
Inputs 1 x XLR 3-pin female (balanced)
1 x 1/4" TRS (balanced/unbalanced)
Drivers 1 x 5" / 127 mm Kevlar woofer
1 x 1" / 25 mm silk dome tweeter
Amplifier Class A/B
Power Output Low Frequency Amp: 60 W
High Frequency Amp: 40 W
Magnetically Shielded Yes
Frequency Response 52 Hz to 35 kHz
Crossover Frequency 2.5 kHz
Input Sensitivity -10 dBU
Input Impedance 10 kOhms (balanced)
20 kOhms (unbalanced)
Maximum SPL 110 dB (measured with full-bandwidth pink noise)
Power 100 to 120 V, 50/60 Hz
220 to 240 V, 50/60 Hz
Consumption 100 W
Polarity Positive signal at "Plus" input produces outward low-frequency cone displacement
Electrical Protection RF interference
Output current limiting
Over temperature
Turn on/off transient
Subsonic filter
External mains fuse
Fuse 100 to 120 V ~ T1.6AL 250 V
220 to 240 V ~ T1AL 250 V
Cabinet Vinyl-laminated, high-acoustic-efficiency MDF
Dimensions (W x D x H) 6.9 x 7.8 x 10.0" / 176 x 197 x 254 mm
Weight 12.3 lb / 5.6 kg
Packaging Info
Package Weight 16 lb
Box Dimensions (LxWxH) 14.9 x 11.6 x 11"

In the Box

  • M-Audio BX5 D3 5" 2-Way 100W Powered Studio Monitor (Single)
  • IEC Power Cable
  • Acoustic Foam Pad
  • Limited 1-Year Warranty
