ADAM Audio T10S
ADAM Audio T10S
Overview

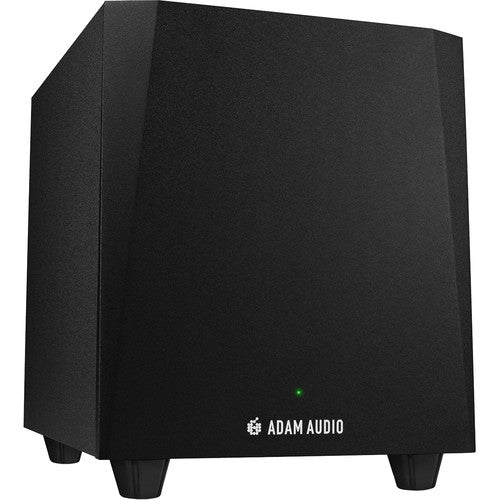

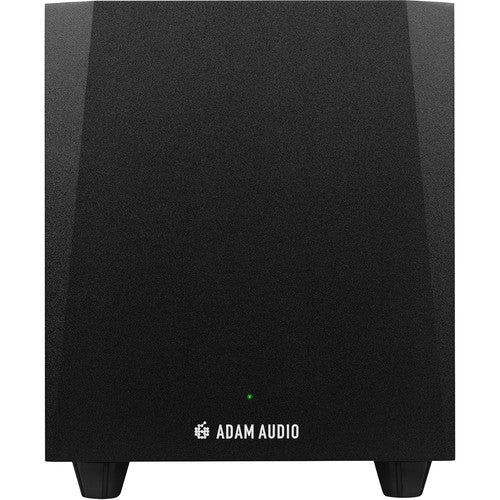

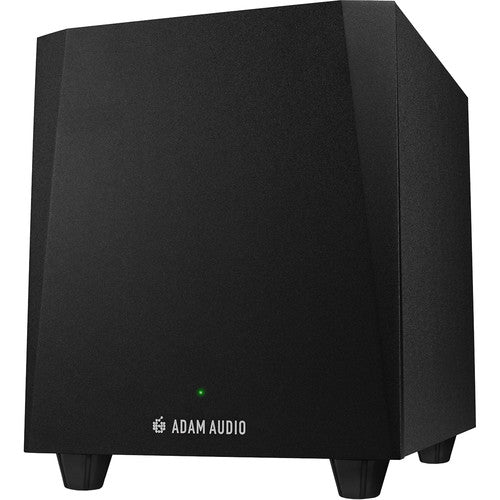

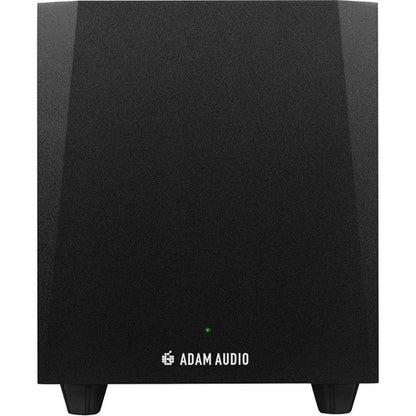

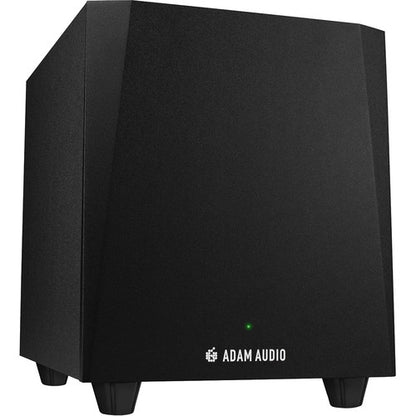

The Adam Audio T10S is a compact, active subwoofer designed to extend the bass response of any nearfield studio monitor. However, the subwoofer's performance, features, and connectivity are specifically engineered to complement Adam Audio's T5V and T7V full-range studio monitors. The small footprint of the enclosure allows it to be easily integrated into any studio environment.

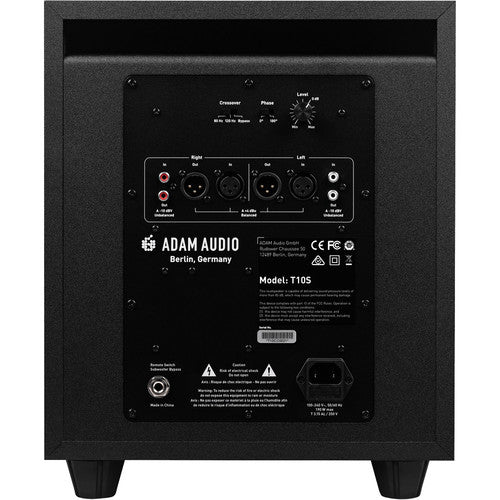

A 130W amplifier powers the 10" down-firing paper cone woofer, which provides a frequency range of 28 to 120 Hz with a maximum SPL of 104 dB. The two-channel crossover is adjustable, allowing for calibration of the bass signal for optimal performance of the entire system. The rear-panel controls include a level knob, a 0/180° phase switch, and three crossover selections including bypass, 80, and 120 Hz. Additionally, there is a remote switch subwoofer bypass (1/4") input, which allows you to activate/deactivate the subwoofer with an optional TS footswitch. The Adam Audio T10S ships with a power cord.
Key features
- Optimized for T-Series Studio Monitors
- 10" Paper Woofer
- Down-Firing Bass Port
- Amplifier: 130W Peak
- Frequency Range: 28 to 120 Hz
- Maximum SPL: 104 dB
- XLR and RCA Inputs
- Phase Switch
- Level and Crossover Controls
- Auto Power On/Off
Specifications
| Monitor Type | Active Subwoofer |
| Enclosure | Bass-Reflex, Unshielded |
| Power Rating | 130 W RMS |
| Drivers | Subwoofer Driver: 1 x 10" / 25.4 cm Paper Cone |
| Frequency Range | 28 Hz to 300 Hz ± 6 dB |
| Maximum Sound Pressure Level (SPL) | 104 dB |
| Phase Adjustment | Phase Inversion 0 / 180° |
| Crossover Frequency | 80 Hz 120 Hz 300 Hz |
| Audio I/O | 2 x XLR Balanced Female Analog Input 2 x XLR Balanced Male Analog Output 2 x RCA Unbalanced Analog Input 2 x RCA Unbalanced Analog Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| Dimensions (W x H x D) | 15.4 x 12.5 x 16.3" / 390 x 318 x 413 mm (Subwoofer) |
| Weight | 27.0 lb / 12.2 kg |
| Package Weight | 31.95 lb |
| Box Dimensions (LxWxH) | 20 x 19.5 x 17" |
