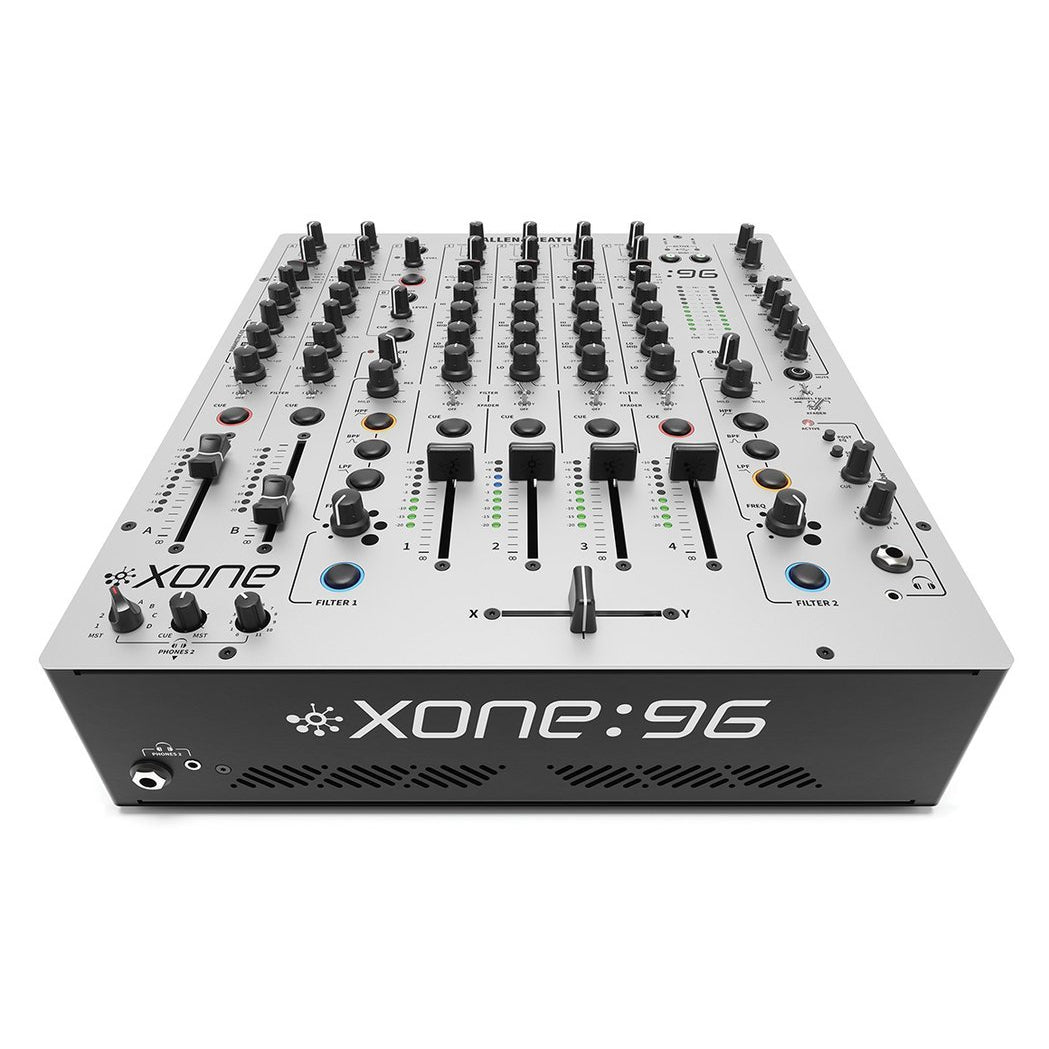

Allen & Heath Xone:96
Allen & Heath Xone:96
Overview
Building upon the success of the XONE:92, the Allen & Heath XONE:96 is a flexible, professional six-channel DJ mixer designed for nightclub and venue installation. The XONE:96 is updated with a dual 32-bit/96kHz soundcard with two USB connections for up to 24 channels of I/O. There are two independent headphone amplifier circuits with 1/4" and 1/8" connections that, when combined with the two separate soundcards, allow for some serious back-to-back sessions and seamless DJ transitions. The classic dual VFC filters (LP, BP, HP) offer frequency cutoff and resonance controls and have been updated with a "Crunch" circuit, which offers controlled harmonic distortion (pre-filter).
Channels 1-4 offer four turntable (phono) and four line inputs on RCA connections, while channels A and B feature balanced XLR microphone inputs and stereo 1/4" line inputs. The XONE:96 is packed with sonic and performance enhancing features that include a powerful four-band EQ on channels 1-4 and a 3-band parametric EQ on channels A & B. Additional features include user replaceable 60mm VCA channel faders, and a replaceable innoFADER Mini crossfader.
Two mix outputs feature balanced XLR and unbalanced RCA connections, while the booth output features stereo 1/4" connections. A stereo pair of RCA outs is available for recording the mixer's outputs. Two stereo auxiliary sends and four stereo returns route signal to external effects and signal processors. The Allen & Heath XONE:96 is a professional DJ mixer and designed to surpass the expectations of the most demanding professional DJs.
Key features
- Six-Channel Mixer
- Dual USB Sound Card
- Dual VCFs (LP, BP, HP)
- Crunch Circuit: Harmonic Distortion
- 3-Band Parametric EQ on Inputs A & B
- 4-Band EQ on Channels 1-4
- 2 x Stereo FX Sends + 4 x Stereo Returns
- Replaceable VCA Channel Faders
- Cross-Fader: innoFADER
- Headphone Outputs: 2 x 1/4" & 1/8"
Specifications
| Number of Channels | 6 x Stereo 2 x Mic |
| Faders | 6 x 2.4" / 60 mm Channel Level (Replaceable, Adjustable Fade Curve) 1 x 1.8" / 45 mm Crossfader (Replaceable, Adjustable Fade Curve) |
| Meters | Channel Meter: 9-Segment LED |
| EQ | 2 x Mic/Aux EQ: Hi Mid (Semi-Parametric) Low 4 x Channel EQ: Hi Hi-Mid Lo-Mid Low |
| Performance Controls | Band-Pass Filter, High-Pass Filter, Low-Pass Filter |
| Built-In Effects | None |
| Sample Rates | 96 kHz |
| Bit Depths | 32-Bit |
| Audio Inputs | 4 x Stereo RCA DVS Return/Phono Input 4 x Stereo RCA Line Input 2 x XLR 3-Pin Mic Input 4 x 1/4" TRS Line Input 1 x 1/4" TRS Hi-Z/Return Input 3 x 1/4" TRS Return Input 2 x 1/4" TRS Return Input |
| Audio Outputs |
2 x XLR 3-Pin Balanced Master Output 2 x 1/4" TRS Balanced Master Output 2 x 1/4" TRS Balanced Booth Output 1 x Stereo RCA Unbalanced Record Output 1 x 1/4" TRS Send Output 3 x 1/4" TRS Send Output 2 x 1/4" TRS Headphone Output 2 x 1/8" / 3.5 mm TRS Headphone Output |
| Other I/O | 1 x MIDI 5-Pin Output 1 x RJ45 Link 2 x Phono Ground Terminal |
| USB | 2 x USB Type-B (USB 2.0, Audio I/O/Class Compliant) |
| Headroom | 20 dB |
| OS Compatibility | macOS Windows |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | 1 x IEC |
| Power Consumption | 45 W (Maximum) |
| Dimensions (W x D x H) | 13.3 x 16.2 x 4.3" / 336.0 x 410.0 x 109.0 mm |
| Weight | 15.4 lb / 7 kg |
| Package Weight | 19.05 lb |
| Box Dimensions (LxWxH) | 21 x 18.5 x 8" |
In the Box
- Allen & Heath XONE:96 Professional 6-Channel Analog DJ Mixer
- Power Cord
- Limited 1-Year Warranty
