Denon DJ MC4000

Overview

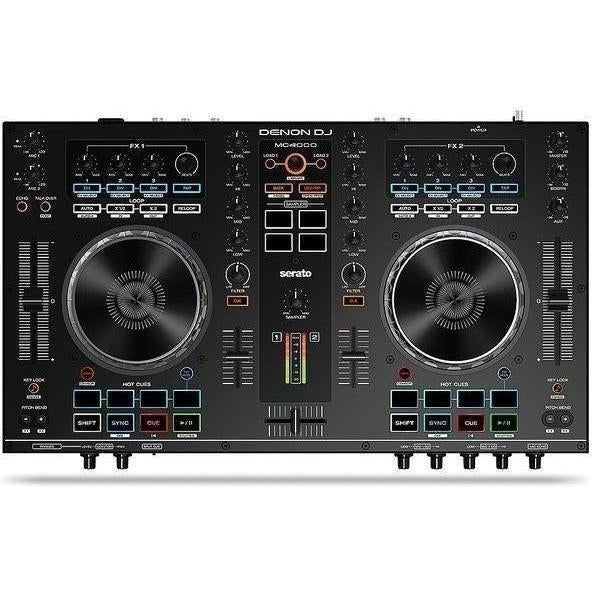

The MC4000 is a 2-deck Serato DJ controller for the professional entertainer wrapping in-demand audio manipulation tools in a robust steel chassis for rugged durability. In addition to precision touch-activated jog wheels, performers get access to dedicated hot cue and sample pads for on-the-fly creativity.

Long-throw 100mm pitch faders and an intuitive control layout deliver natural operation when balancing complex set elements. A particularly useful feature—and virtually unheard of at the MC4000’s modest price point—is Balanced Booth Outputs, which feeds the program signal to a set of local monitor speakers near the DJ, with the ability to adjust the Booth level independent of the main level.

Key Features

• Includes Serato DJ Lite; user-upgradeable to Serato DJ Pro
• Touch-activated jog wheels for accurate scratching and track cueing
• Dedicated Hot Cue and sample trigger pads with illuminated feedback
• Long-throw 100mm pitch faders
• Balanced Booth Outputs for local monitor speakers, with independent level control
• Spacious control layout for effortless, optimized workflow
• Dedicated EQ and FX controls on each channel
• (2) Balanced mic inputs with 2-band EQ, Ducking, and Echo effect
• RCA Aux input for external device mixing

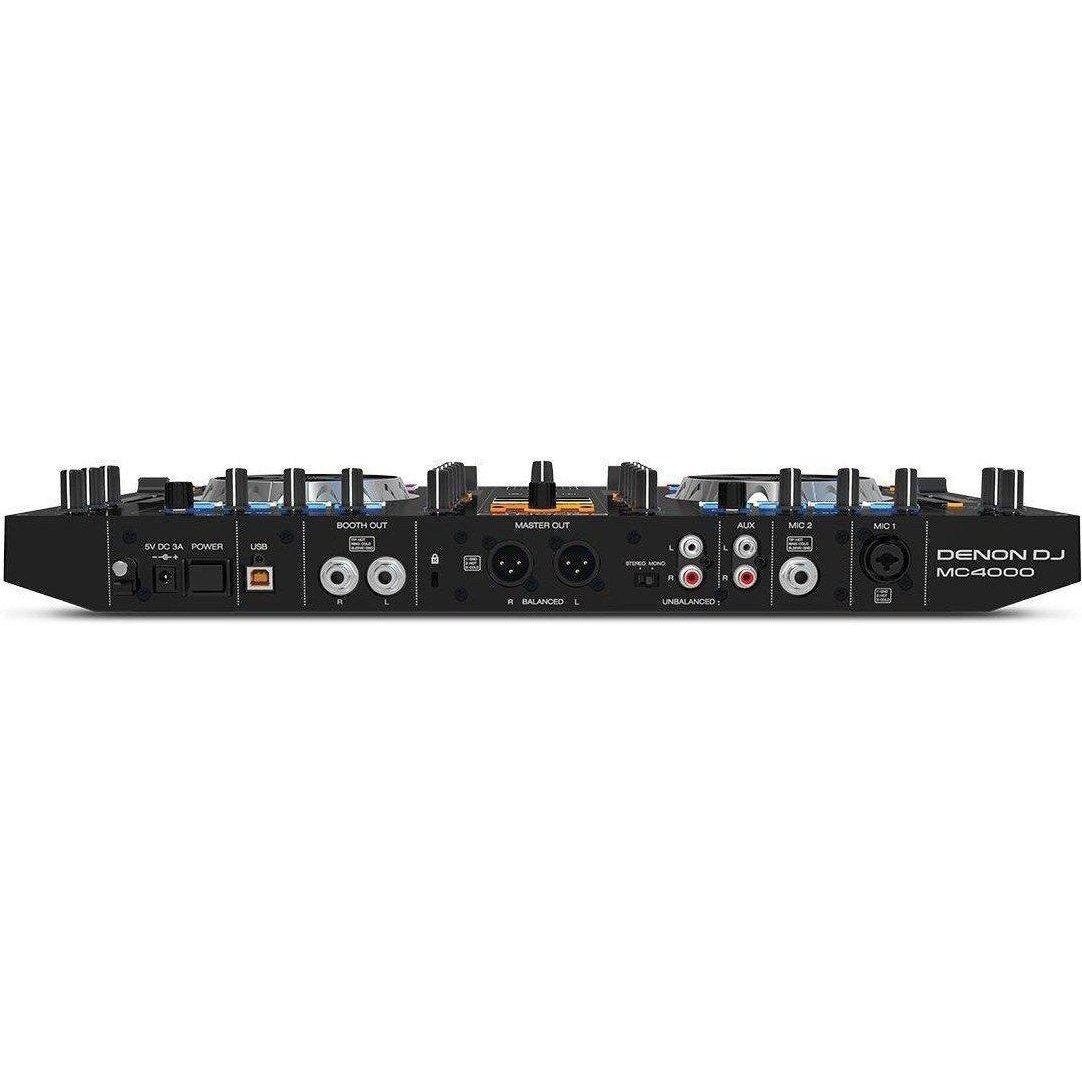

• Balanced Main and Booth Outputs
• Pro-grade steel construction ensures long-term durability
• Compatible with Traktor 2 (via .tsi files), Algoriddim djay Pro and Virtual DJ 8

Specifications

USB Audio/MIDI Interface

• USB 2.0
• Sampling Rate: 44.1, 48 kHz (0 channels in, 4 channels out)
• Bit Depth: 24 bit

Frequency Response

• 20 Hz – 20 kHz (+1.0 dB)

Dynamic Range

• Digital-to-Analog Converter: > 112 dB (A-weighted)
• Total: > 105 dB (A-weighted)

Signal-To-Nose Ratio

• > 88 dB, A-weighted

Headroom

• Aux Input: > 17 dB
• Mic Input: > 20 dB
• Outputs: > 20 dB

THD+N

• < 0.01% (1 kHz at unity)

Channel Separation

• < -80 dB (1 kHz at unity)

Analog Input

• Microphone: -60 dBu (minimum), -40 dBu (unity)
• Aux: +17 dBV (maximum), 0 dBV (unity)

Analog Output

• Master (XLR): +24 dBu (maximum), +4 dBu (unity)
• Master (RCA): +19 dBu (maximum), 0 dBu (unity)
• Booth: +24 dBu (maximum), +4 dBu (unity)
• Headphone: > 100 mW at 40 Ω

Microphone Input

• Equivalent Input Noise: < -116 dBu (Rs = 150 Ω, DIN)
• Common Mode Rejection Ratio: > 75 dB

Microphone Effects

• Talkover: -20 dB attenuation, 40 ms attack time, 250 ms hold time, 100 ms release time
• Echo: 199 ms rate, -6 dB feedback, -∞ to 0 dB range (-9 dB center)
• EQ: +15 dB high band (1 kHz cutoff), +15 dB low band (1 kHz cutoff)

Unit Size

• 19.9 (W) x 12.3 (D) x 2.7 (H) (Inches)
• 505 (W) x 312 (D) x 69 (H) (Millimeters)

Unit Weight

• 8.95 lbs
• 4.06 kg

Unit Weight with Carton

• 13.22 lbs
• 6.0 kg
