Denon DJ X1800 Prime

Overview

The Denon DJ X1800 Prime is a high-quality 4-channel digital mixer that interfaces seamlessly with SC5000 Prime players, bringing your DJ equipment setup to the next level. With it’s rugged metal construction and crisp OLED screen for precise menu based adjustments, the X1800 Prime is ready for anything you throw at it.

When DJing a party, there is nothing that stops the fun quicker than when a DJ disconnects their computer from their controller or mixer after a set in order to have the next DJ connect and all of the music stops. With the X1800 Prime’s dual USB audio connection, 2 computers can be connected for an uninterrupted DJing experience, even when your set is finished and it’s time for the next DJ to rock the crowd.

Key features

• 4-CHANNEL DIGITAL MIXER WITH 4 PHONO/LINE SWITCHABLE CHANNELS
• BPM FX section with frequency controlled ‘Band-Isolation’
• Dual USB audio connections for software and audio devices.
• Dedicated Sweep and BPM FX Knobs — high-quality effects for each channel with a single knob turn
• Expressive EQ – choose Classic or Isolation modes and an Adjustable Filter Resonance Control
• ‘Engine Connect’ protocol for beatgrid locked FX
• Expressive Denon DJ ‘Flex-Fader’, Crossfader
• Connect MIDI based effects and instruments
• 24-bit/96kHz digital output for uncompromised audio quality
• Crisp OLED screen for precise menu based adjustments
• (4) Digital inputs for high-resolution audio mixing
• LAN Hub for up to four players or accessories
• Rugged metal construction
• Your DJ Heartbeat
• Dominate The Dancefloor!
• Craft Your Sound

Specifications

Dynamic Range (master)

• > 117 dB (A-weighted)


Frequency Range

• 22–22,000 Hz (+1 dB)


Signal-to-Noise Ratio

• Line: > 93 dB (A-weighted)
• Phono: > 87 dB (A-weighted)


THD+N

• < 0.02%


Channel Separation

• Headroom: < -90 dB (@ 1 KHz, unity)
• Line Inputs: > 16 dB

• Microphone Inputs: > 20 dB

• Outputs: > 20 dB


Analog Output

• Master (balanced): +24 dBu (maximum), +4 dBu (unity)
• Master (unbalanced): +20 dBu (maximum), 0 dBu (unity)
• Booth: +24 dBu (maximum), +4 dBu (unity)
• Record: +10 dBV (maximum), -10 dBV (unity)
• Send: +10 dBV (maximum), -10 dBV (unity)
• Record: +10 dBV (maximum), -10 dBV (unity)
• Headphones: > 150 mW @ 40 Ω


Analog Input

• Line: +15 dBV (maximum), 0 dBV (unity)
• Phono: -22 dBV (maximum), -40 dBV (unity)
• Microphone: -40 dBV (maximum), -60 dBV (minimum)
• Return: +15 dBV (maximum), 0 dBV (unity)


Microphone Inputs

• CMRR: > 80 dB (@ 1 KHz, unity)
• EIN: < -124 dBu (Rs = 150 Ω, DIN)


Digital Output

• Sampling Rate: 44.1, 48, 96 kHz
• Bit Depth: 24-bit


Displays

• 6” / 39 mm (diagonal)
• 4” x 0.69” / 35 x 17 mm (width x height)
• (2) monochromatic LED-backlit displays

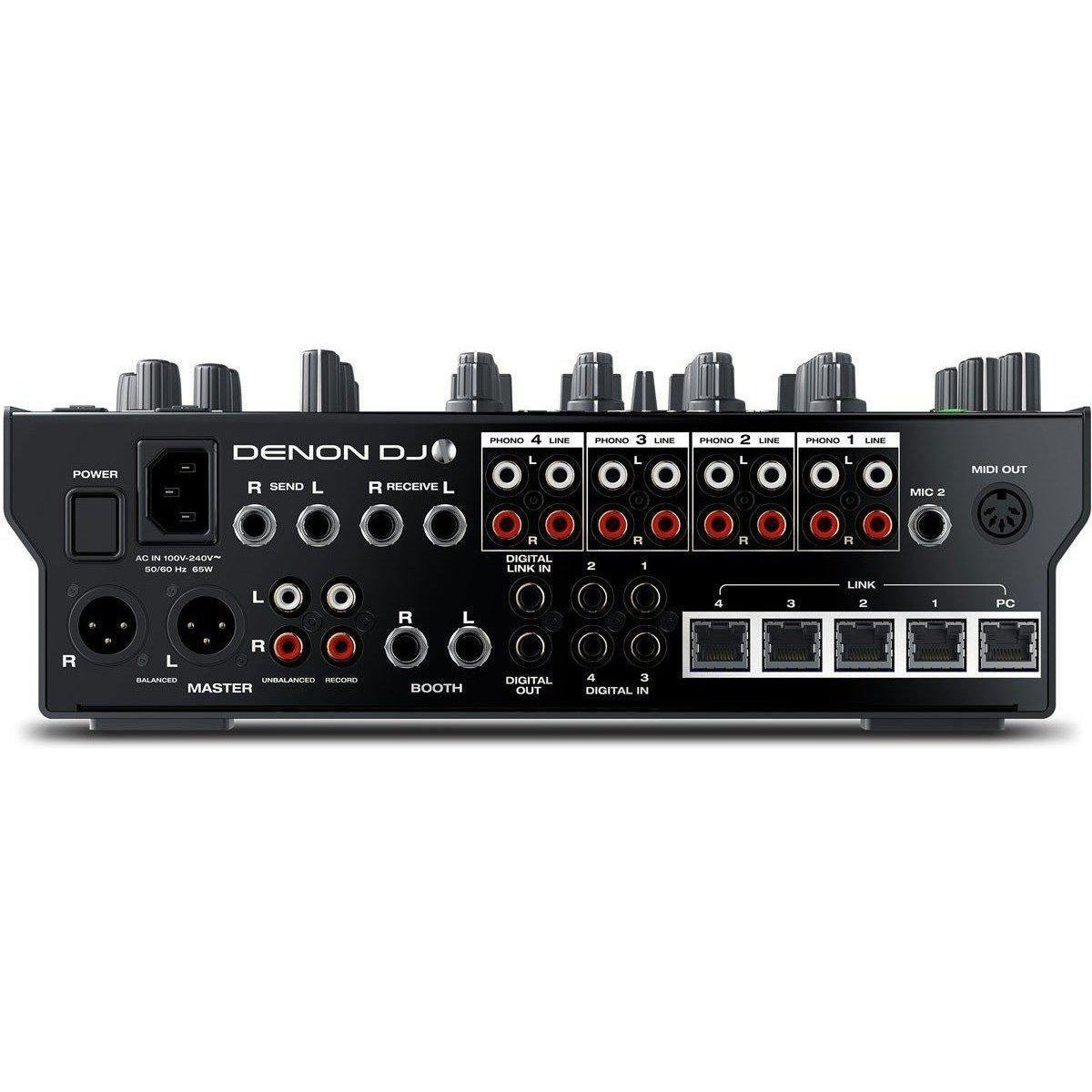

Connections

• 2) XLR outputs (balanced master)

• (2) RCA output pairs (1 unbalanced master, 1 unbalanced record)
• (5) 1/4” (6.35 mm) outputs (2 booth, 2 send, 1 headphone)

• 1/8” (3.5 mm) output (headphone)

• coaxial digital output (audio)

• (1) 5-pin DIN MIDI output


• (8) RCA input pairs (4 line, 4 phono)

• XLR+1/4” (6.35 mm) input (Mic 1)

• /4” (6.35 mm) inputs (2 receive, 1 Mic 2)

• (5) RCA digital inputs (4 audio, 1 link)

• (5) Ethernet link ports


• IEC power inlet


Power

• Connection: IEC


• Input Voltage: 100–240 V~, 50/60 Hz
• Consumption: 65 W


Dimensions (width x depth x height)

• 2” x 17.5” x 4.3” / 31.1 x 44.5 x 11.0 cm


Weight

• 43 lbs. / 7.00 kg

Box Contents

• Power Cord
• USB Cable
• User Guide
• Safety & Warranty Manual
