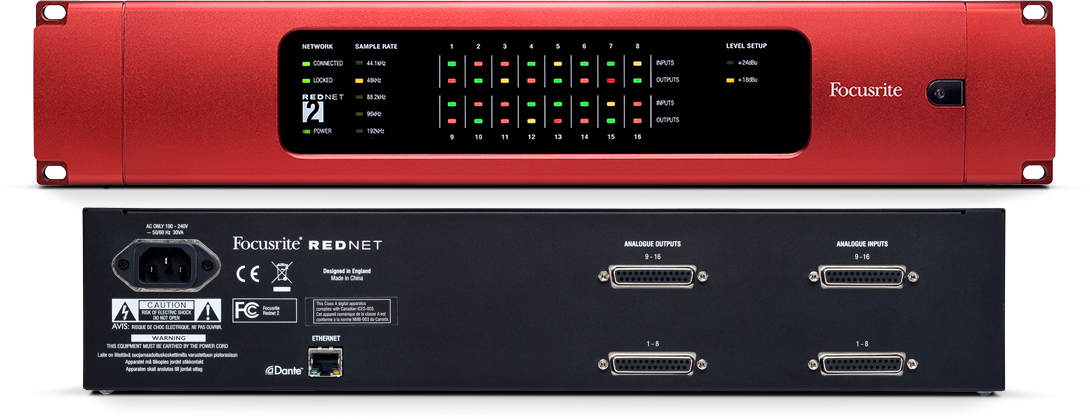

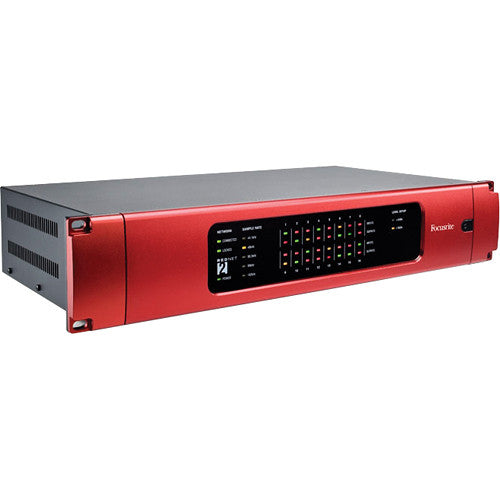

RedNet 2fromFocusriteis a sixteen-channel, remote controlled input/output analog audio interface that uses the Dante digital audio networking system to bring studio quality sound to any modern audio application. The unit features 24-bit A-D and D-A conversion for excellent audio performance, with 119 dB of dynamic range at sample rates up to 192 kHz. Rock-stable JetPLL clocking and premium multi-layered board circuitry further facilitate the delivery of uncompromised audio.
The RedNet system was designed for use in multiple audio applications, from live sound rigs to multi-room recording studios, houses of worship, audio distribution installations, post production environments and anything in-between. The system is scalable and delivers near zero latency audio distribution, with the ability to expand I/O channel count, interface digital components, and/or bridge between Pro Tools|HD or MADI and a Dante audio network.

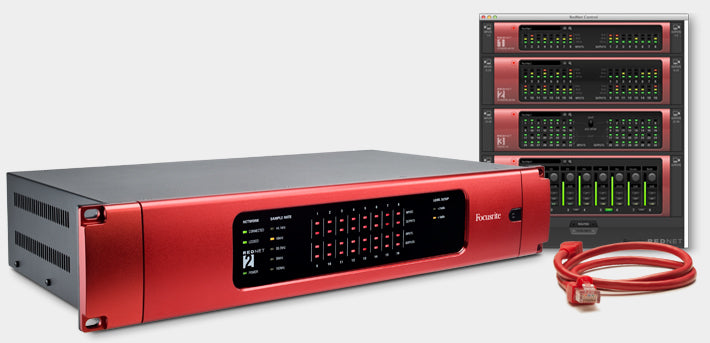

There are three methods of connecting the RedNet 2 to a computer using a single Ethernet cable. These are via anoptionalRedNet PCIe card (for ASIO and Core Audio applications), directly into the computer's Ethernet port using DVS (Dante Virtual Soundcard) software where near zero latency is not essential, or through an existing RedNet 5 interface for connecting directly to Pro Tools HD, Pro Tools HDX and Pro Tools HD Native.
16 Channels Analog I/O
Single Ethernet Cable Connection
Route Signals to Multiple Destinations
24-bit A-D and D-A Conversion
Up to 192 kHz Sample Rates
RedNet Control Software
Internal Universal Power Supply
Analog Line Inputs: 16 Connector: 2 x 25-pin D-Sub female, wired to AES 59 0 dBFS Reference Levels: +18 or +24 dBu (switchable) Frequency Response: 20 Hz to 20 kHz, +/-0.05 dB THD+N: < 0.001%, unweighted, -1.0 dBFS input, 20 Hz to 22 kHz Dynamic Range: 119 dB A-weighted (-60 dBFS method) Converter Dynamic Range: 120 dB SNR: 119 dB A-weighted, 20 Hz to 20 kHz
Analog Line Outputs: 16 Connector: 2 x 25-pin D-Sub female, wired to AES 59 0 dBFS Reference Levels: +18 or +24 dBu (switchable) Frequency Response: 20 Hz to 20 kHz, +/-0.15 dB THD+N: < 0.001%, unweighted, -1.0 dBFS input, 20 Hz to 22 kHz Dynamic Range: 119 dB A-weighted (-60 dBFS method) Converter Dynamic Range: 120 dB SNR: 119 dB A-weighted, 20 Hz to 20 kHz
Input or Output to Input: Input or Output to Output:
Supported Sample Rates: 44.1, 48, 88.2, 96 and 192 kHz Clock Sources: Internal or from network master device
Front Panel Indicators
Power: 1 x Green Network Connected: 1 x Green Sync Lock: 1 x Green Sample Rate: 5 x Yellow Input/Output Range: 2 x Yellow Input/Output Signal Level: 16 x Bi-color (green = -42 dBFS; orange = -6 dBFS; red = overload)
