Focusrite Saffire Liquid 56
Focusrite Saffire Liquid 56
Overview

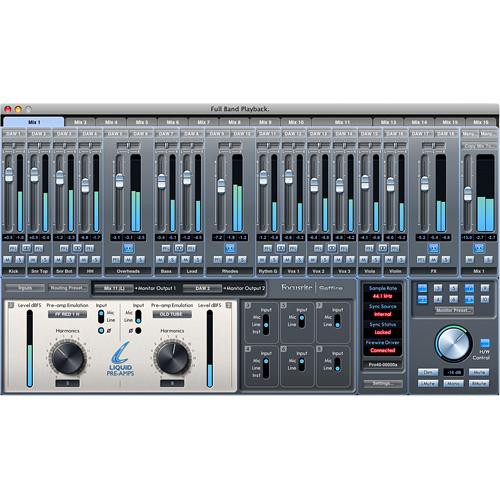

The Liquid Saffire 56 from Focusrite is a 28 input and 28 output FireWire digital audio interface featuring 8 microphone preamps, 2 of which utilize the company's innovative Liquid technology. A comprehensive complement of I/O options is provided, including a loop-back facility for routing audio between software applications via the Saffire Mix Control software.
The Liquid preamps represent a marriage of a flexible analog front end with dynamic convolution DSP, with each preamp providing a choice of 10 different classic pre-amp emulations, with an eleventh "flat" option. Emulations are based on the Neve 1073, the Pultec MB-1, Telefunken V72 amongst others. The other 6 preamps are Saffire based, with all 8 pre-amps demonstrating the same wide bandwidth philosophy that lay behind early vintage Focusrite units.
Key features
- 28 Inputs/28 Outputs
- 2 Liquid Microphone Preamps
- 6 Microphone Preamps
- Phantom Power
- S/PDIF
- ADAT
- Includes Software Bundle
- Focusrite Red 2 and Red 3 Plug-In Suite
- Mac OS X, Windows
Specifications
| Converters | 24-bit |
| Sample Rates | 44.1, 48, 88.2, 96, 176.4 and 192kHz |
| Analog Input | 8 x XLR Microphone 8 x 1/4" TRS phone Line (rear panel) 2 x 1/4" TRS phone Instrument (front panel) |
| Analog Output | 10 x 1/4" TRS phone 2 x 1/4" TRS phone Headphone |
| Digital Input | 2 x TOSLink ADAT Lightpipe 1 x RCA coaxial S/PDIF 1 x BNC Wordclock |
| Digital Output | 2 x TOSLink ADAT Lightpipe 1 x RCA coaxial S/PDIF 1 x BNC Wordclock |
| MIDI In/Out | 2 x 5-pin DIN I/O |
| Sync In/Out | Wordclock S/PDIF |
| Headphone Output | 2 separate busses |
| THD + N | Microphone/Line: 0.001% (@ 1kHz with 20Hz to 22kHz band-pass filter) Instrument: 0.004% (0dBu input and 20Hz to 22kHz band-pass filter) |
| Dynamic Range | 109dB, A-weighted |
| Frequency Response | 20Hz to 20kHz, +/-0.1dB |
| Power Requirements | 100~240V, 50/60Hz |
| System Requirements |
Mac: PowerPC G4/Dual 1GHZ or faster or any Intel-based Mac OSX 10.4 and 10.5 512MB (more recommended) PC: |
| Dimensions (WxDxH) | 19 x 9.3 x 3.5" (483 x 236 x 89mm) |
| Weight | 11 lbs (5kg) |
| Specialties | JetPLL jitter elimination technology |
| Package Weight | 13.5 lb |
| Box Dimensions (LxWxH) | 24 x 13 x 7" |
