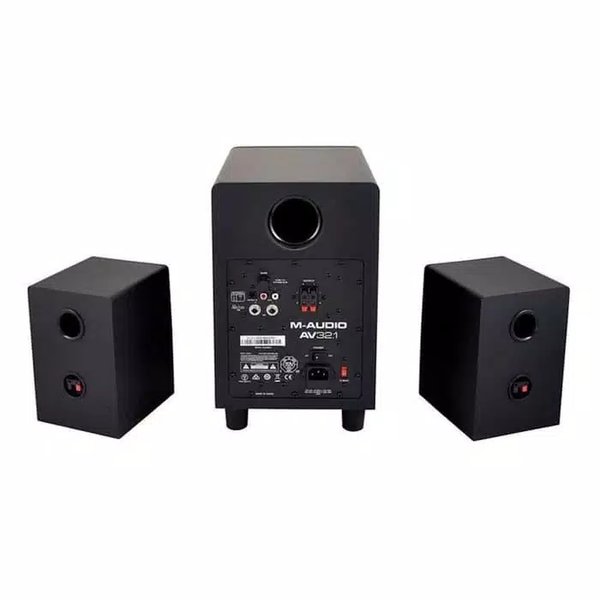

M-Audio AV32.1
M-Audio AV32.1
Overview
The AV32.1 Dual Speaker & Subwoofer System from M-Audio is a complete sound system that delivers deep, lifelike, full-range sound. It is comprised of two compact speakers and a powerful subwoofer. Each speaker uses a 3” high-definition polypropylene driver for accurate midrange reproduction, while a 1” soft-dome tweeter in the OptImage IV Waveguide provides precise acoustic imaging.
The AV32.1 Subwoofer has an internal custom-equalized amplifier with a down-firing, long-excursion 6.5” woofer that delivers high-impact bass down to 36 Hz (-3 dB). Also included in the system is a compact and convenient remote control that powers the system on or off, adjusts the volume, and provides a sub bypass option. This is also an ideal system for monitoring and mix-down use.
The two speakers deliver musically-accurate and detailed sound so you can clearly hear what’s in your mix, while the subwoofer bypass mode on the remote control enables you to do an instant check of how your recording sounds with or without a subwoofer. The speaker system is ideal for use with television sets, computers, portable music players, or any devices with analog or digital outputs.
Key features
- 3-channel amplifier in sub cabinet powers the subwoofer and two speakers
- Digital (optical), analog RCA and TRS inputs for connection to virtually any equipment
- Subwoofer uses powerful down-firing 6.5" woofer in ported enclosure for deep bass to 36 Hz
- Speakers have 3" polypropylene midrange drivers and 1" silk dome tweeters
- Cables included for connecting speakers to subwoofer and system to your personal music player
- Vinyl-laminated high-acoustic-efficiency MDF cabinet
Specifications
| Driver | Low-Frequency Driver: 3.5" polypropylene-coated, with high-temperature voice coil High-Frequency Driver: 1" silk cone tweeter |
| Frequency Response | 80 Hz to 20 kHz |
| Crossover Frequency | 3.3 kHz |
| Driver | Low Frequency: 6.5" coated paper, with high-temperature voice coil |
| Frequency Response | 36 to 200 Hz |
| Crossover Frequency | 100 Hz |
| Input Connectors | Stereo RCA line input Stereo 1/4" TRS balanced/unbalanced input Digital (optical) supporting PCM up to 24-bit/192 kHz |
| Polarity | Positive signal at "+" input produces outward low-frequency cone displacement |
| Input Impedance | 20 kOhms balanced, 10 kOhms unbalanced |
| Power | Monitors (RMS/Music): 20 + 20 W / 25 + 25 W Subwoofer (RMS/Music): 70 / 100 W |
| Protection | RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter |
| Indicator LEDs | White LED for power/standby and indicating remote control operation |
| Power Requirements | Factory-programmed for 100 to 120 VAC (50/60 Hz), 220 to 240 VAC (50/60 Hz) |
| Dimensions (H x W x D) | Subwoofer: 10.8 x 7.9 x 11.4" (27 x 20 x 29 cm) Satellite: 7.4 x 5.2 x 6.1" (19 x 13 x 16 cm) |
| Weight | 19 lb (8.5 kg) |
| Package Weight | 22 lb |
| Box Dimensions (LxWxH) | 21.1 x 17.1 x 11.4" |
In the Box
- M-Audio AV32.1 Dual Speaker & Subwoofer System
- Limited 1-Year Warranty
