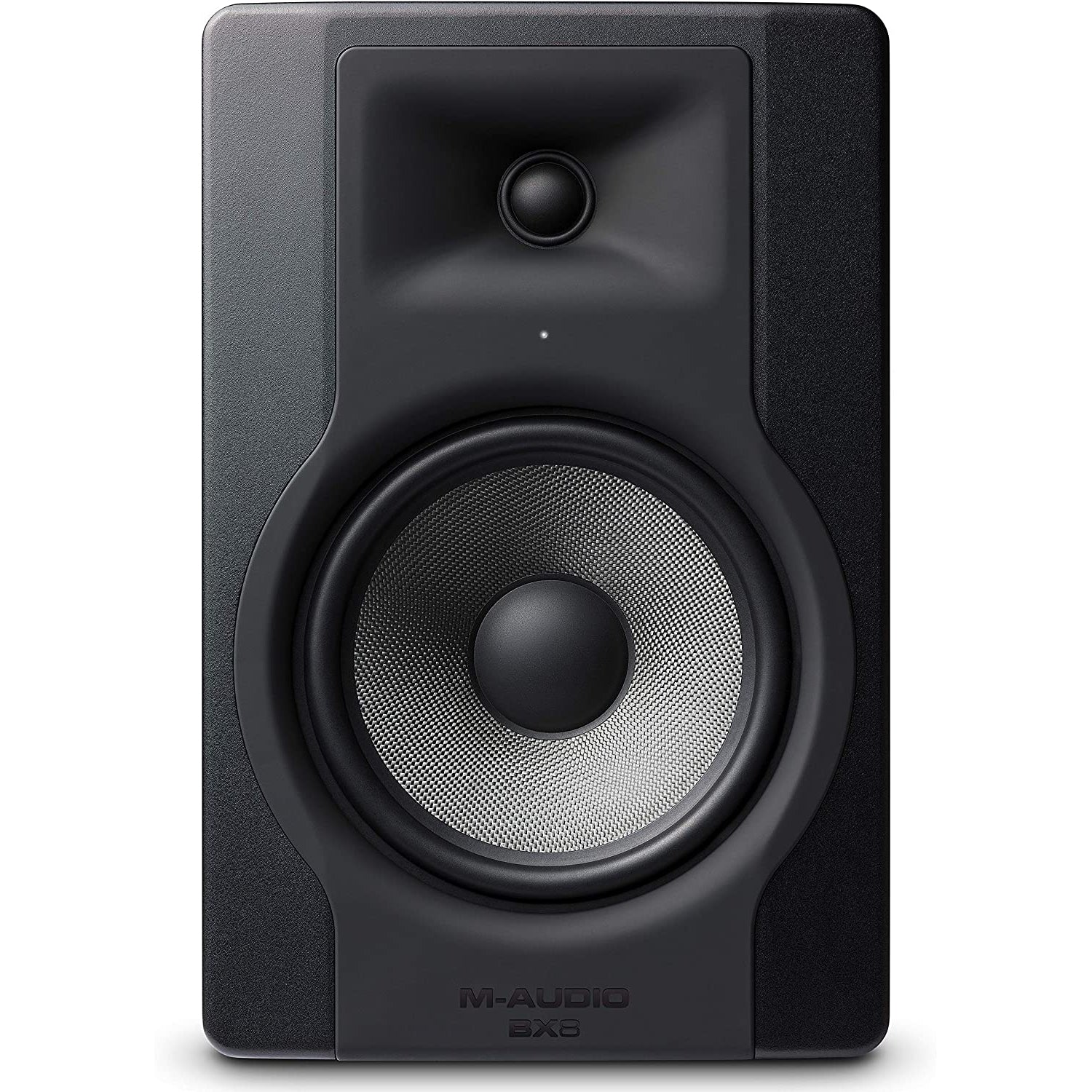

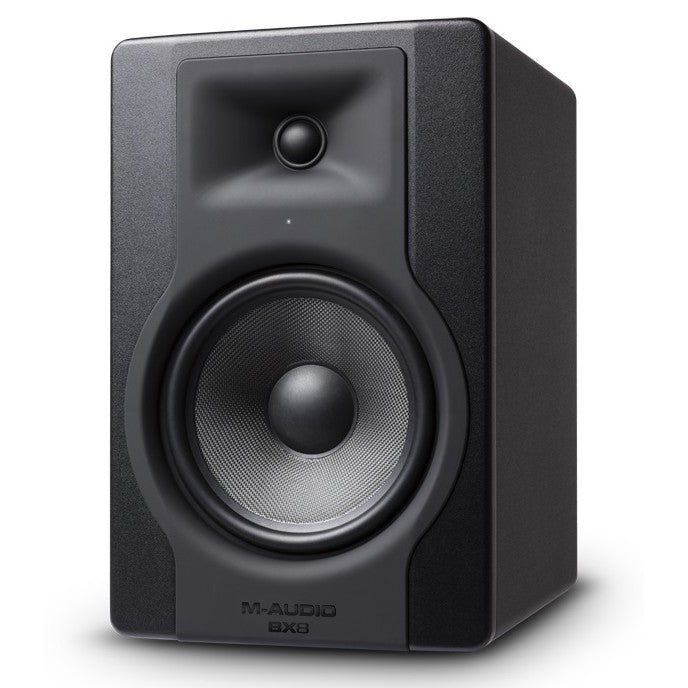

TheBX8 D3fromM-Audiois a 2-way, 150W powered studio monitor designed to offer a wide frequency response and easy configuration for mixers, DJs, producers, and recordists in small to medium control rooms, personal studios, and mobile rigs. The monitor produces a frequency response of 37 Hz to 22 kHz, thanks to two Class A/B amplifiers feeding an 8” Kevlar woofer and a 1.25” silk dome tweeter.
A rear-mounted bass port delivers extended bass response, while the tweeter’s custom waveguide yields a wide sweet spot and minimized high-frequency scatter. Volume and low-frequency controls are provided so you can tune the monitor to cooperate with the sound of the room. Place the monitor on the supplied acoustic foam pad to decouple it from your table or stands, which aids in reducing unwanted bass vibrations.
The BX8 D3 can interface with a variety of equipment, via balanced XLR and balanced/unbalanced 1/4” TRS input jacks. Setup is simple, due to the front-mounted LED, which appears brighter when you are at the ideal angle.
8" Kevlar Woofer
1.25" Silk Dome Tweeter
150W Bi-Amped Power
37 Hz to 22 kHz Frequency Response
Class A/B Amplifiers
Volume and Low-End Controls

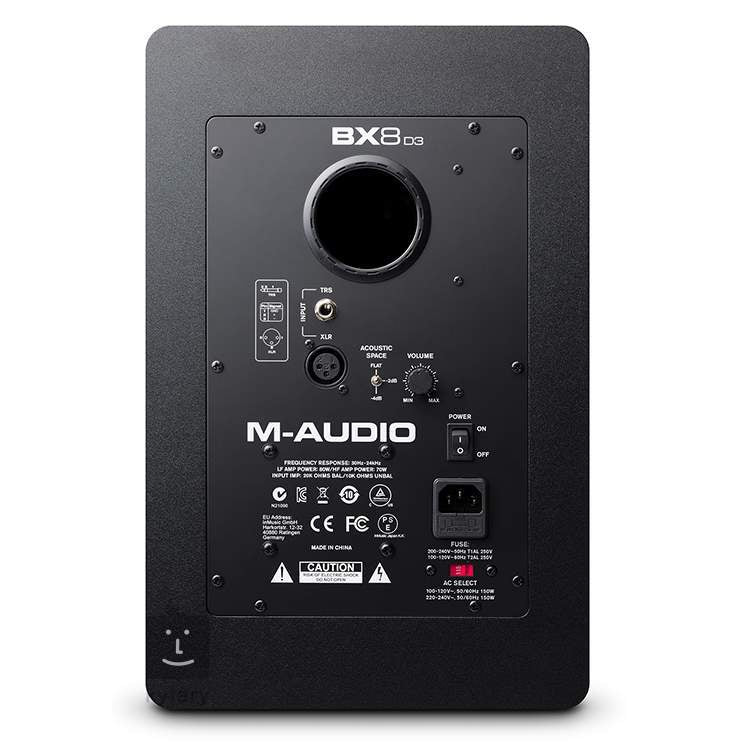

Rear Bass Port
XLR and 1/4" TRS Inputs
Includes Acoustic Foam Pad
1 x XLR 3-pin (balanced) 1 x 1/4" TRS (balanced/unbalanced)
1 x 8" / 203 mm Kevlar woofer 1 x 1.25" / 32 mm silk dome tweeter
Low Frequency Amp: 80 W High Frequency Amp: 70 W
37 Hz to 22 kHz
10 kOhms (balanced) 20 kOhms (unbalanced)
114 dB (measured with full-bandwidth pink noise)
100 to 120 V, 50/60 Hz 220 to 240 V, 50/60 Hz
Positive signal at "Plus" input produces outward low-frequency cone displacement
RF interference Output current limiting Over temperature Turn on/off transient Subsonic filter External mains fuse
100 to 120 V ~ T2AL 250 V 220 to 240 V ~ T1AL 250 V
Vinyl-laminated, high-acoustic-efficiency MDF
Dimensions (W x D x H)
9.8 x 11.9 x 15.1" / 250 x 302 x 384 mm
23.1 lb / 10.5 kg
Box Dimensions (LxWxH)
20 x 16.4 x 14.2"
In the Box
M-Audio BX8 D3 8" 2-Way 150W Powered Studio Monitor (Single)
