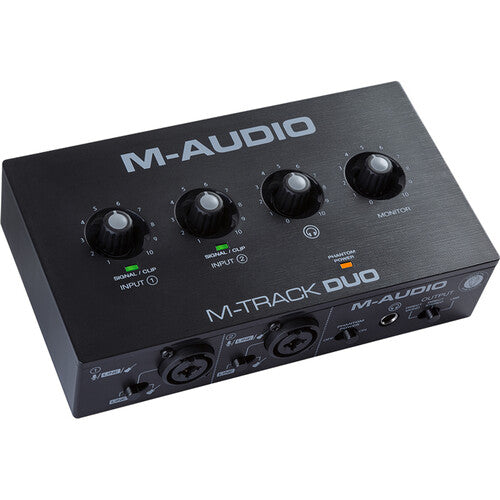

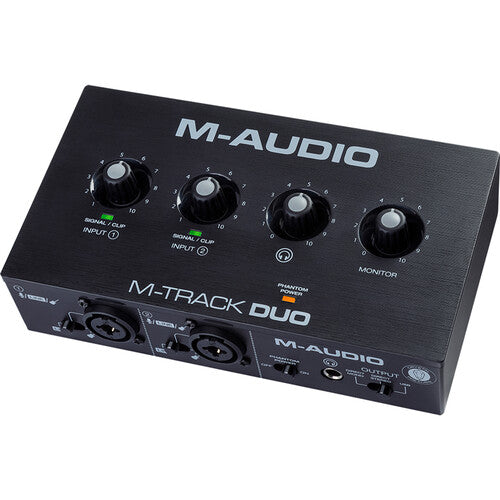

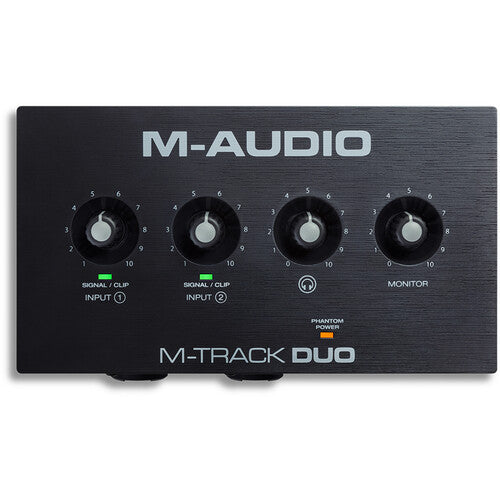

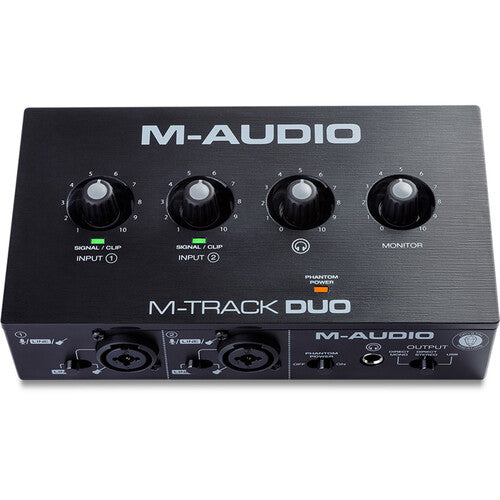

M-Audio M-Track Duo

Overview

The M-Track Duo is the best, most portable recording interface in its class. It delivers 48 kHz audio resolution in a compact and easy to use format that is ideal for creating music on any Mac, PC or iOS device. This versatile interface works great for recording any type of sound source and features two Combo Crystal Preamps with phantom power, making it compatible with any microphone. Plus, there is a dedicated switch to choose either a line level or instrument level input, perfect for connecting digital pianos, drum machines or any other stereo ¼” inch line level device, as well as the best possible signal for DI guitar or bass. M-track Duo is completely powered by USB, which makes it portable and perfect for anyone on-the-go. Throw it into your bag, grab a laptop, and create your next podcast, song, or mix, anywhere you want!

Key features

• 2-Channel USB recording interface for Mac and PC

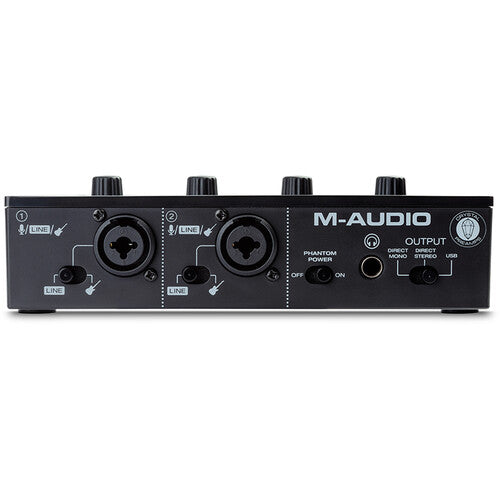

• (2) Combo inputs with Crystal Preamps amazing audio quality
• Dedicated switches to enable any microphone, instrument, or line level device
• +48V phantom power for connecting studio condenser microphones

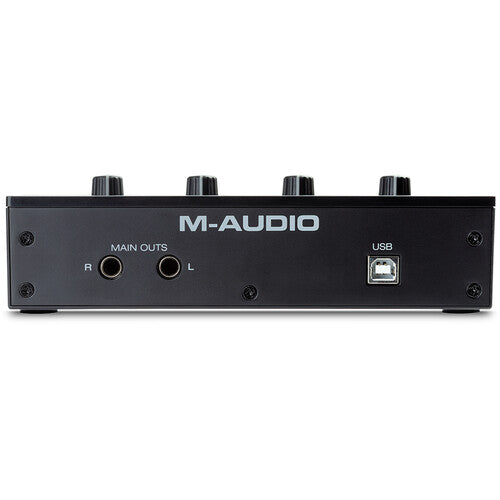

• Stereo 1/4” outs; 1/4” headphone out with independent level controls
• USB/Direct Mono/Direct Stereo switch for monitoring mic, line or instrument inputs in stereo or mono
• Included - Pro Tools | First M-Audio Edition, MPC Beats, AIR Music Tech Xpand!2, Eleven Light guitar amp plugins and 20 Avid effects

Specifications

Mic Input (balanced XLR)
Frequency Response	20 Hz – 20 kHz (+0.1 dB)
Signal-to-Noise Ratio	109 dB (A-weighted)
THD+N	0.003% (min. gain, 0 dBu out, A-weighted)
Preamp EIN	-128 dBu (max. gain, 40 Ω source, A-weighted)
Gain Range	Direct Mono: 0 dB to +54 dB Direct Stereo: 6 dB to +60 dB



Line Input (balanced 1/4" [6.35 mm] TRS)
Frequency Response	20 Hz – 20 kHz (+0.1 dB)
Sensitivity	-43 dBu
THD	0.002% (min. gain, 0 dBu out, A-weighted)
Gain Range	Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB



Instrument Input (unbalanced 1/4" [6.35 mm] TS)
Frequency Response	20 Hz – 20 kHz (+0.1 dB)
THD+N	0.005% (min. gain, 0 dBu out, A-weighted)
Input Impedance	1 MΩ
Gain Range	Direct Mono: -10 dB to +44 dB Direct Stereo: -4 dB to +50 dB



Main Outputs, L and R (impedance-balanced 1/4" [6.35 mm] TRS)
Frequency Response	20 Hz – 20 kHz (+0.1 dB)
Signal-to-Noise Ratio	109 dB (A-weighted)
THD	0.002% (0 dBu out, A-weighted)
Max Output Level	+4 dBu



Headphone Output (1/4” [6.35 mm] TRS)
Power	60 mW/Ch, 32 Ω
Frequency Response	20 Hz – 20 kHz (+0.5 dB)
THD+N	0.02% (A-weighted)
Signal-to-Noise Ratio	100 dB (A-weighted)

What’s In The Box

• M-Track Duo
• USB-B–to–USB-A Cable
• Software Download Cards
• User Guide
• Safety & Warranty Manual
