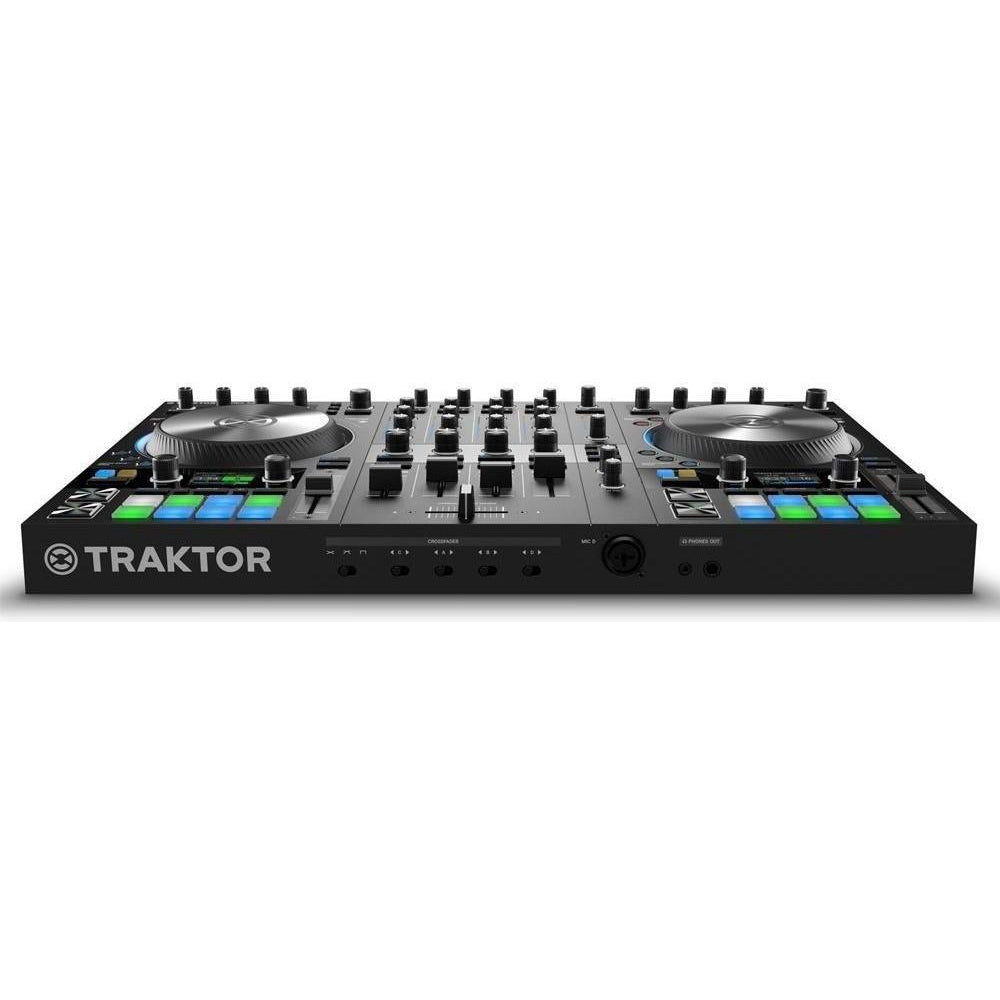

Native Instruments Traktor Kontrol S4 MK3

Overview

The TRAKTOR Control S4 is the new-generation 4-Channel DJ system with Haptic Drive jog wheels. New large motorized jog wheels with haptic feedback in three modes: Feel a 'click' for cue points and loops when scrolling through tracks. 1. Turntable mode: Motorized jog wheels spin according to track tempo while deck is playing, with natural backspin feel; slip mat action via touch-sensitive top plates; powerful torque allows turntable platter feel on rims for nudging the deck; adjustable torque and start/stop times. 2. Jog mode: Traditional spin-to-nudge jog wheel behavior that speeds up or slows down the deck; adjustable jog wheel resistance and start/stop times; 3. Beat grid mode: Use the jog wheel to manually adjust the beat grid in TRAKTOR.

Key features

• New large motorized jog wheels with haptic feedback in three modes: Feel a 'click' for cue points and loops when scrolling through tracks
• RGB LED Ring surrounding each jog wheel visualizes deck rotation in jog and turntable modes, track tempo, and deck selection (A and B in blue, C and D in orange)
• High-resolution color displays show track ID, key and tempo, transport data, waveform strip with track position, phase meter, loop length and state, as well as Remix and Stem decks control
• New Mixer FX for instant one-knob effects and filters on each channel. Choose from 8 FX and 3 filter types in addition to TRAKTOR deck effects
• Pro Mixer Layout with long-life Carbon Protect faders, dedicated cue section on top plate, and adjustable crossfader curve. 16 RGB pads for triggering Hot cues, loops, or samples

Specifications

Audio Inputs (A/D)

• Channel : 4 Stereo
• Sample Rate / Resolution : 96-kHz / 24-bit
• Converter : Cirrus Logic CS5368

Line Inputs

• DNR (a-weighted) : 110 dB
• Frequency Response : 20 Hz - 20 kHz, +0.1/-0.05 dB
• THD+N : 0.002%

MIC Input

• DNR (a-weighted) @ 1 kHz : 104 dB
• Frequency response : 20 Hz - 20 kHz, +0.04/- 2.7 dB

Phono Inputs

• Input Impedance : 48.5kΩ
• DNR (a-weighted) @ 1 kHz : 78 dB

Audio Outputs (D/A)

• Channels : 2 Stereo
• Sample Rate / Resolution : 96-kHz / 24-bit
• Converter : Cirrus Logic CS4385

Line Outputs (XLR & 1/4” Booth)

• DNR (a-weighted) : 110 dB
• Frequency Response : 20 Hz - 20 kHz, +0.4/- 0.2 dB
• THD+N : 0.001%

Line Outputs (RCA)

• Load Impedance : 33Ω
• DNR (a-weighted) : 104 dB
• Frequency Response : 20 Hz - 20 kHz, +0.4/- 0.3 dB

Item Weight

• 9.48 pounds

Product Dimensions

• 21.3 x 13.3 x 2.4 inches

Shipping Weight

• 12.17 pounds
