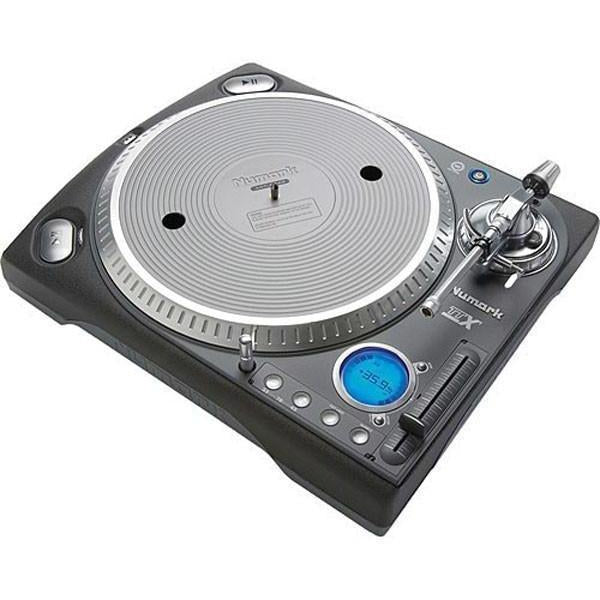

Numark TTXUSB

Overview

The TTXUSB stands alone among professional turntables because it was exclusively designed for the modern DJ, with a silicon rubber base that absorbs vibration and dampens low end feedback, and an interchangeable tone arm system that adapts to any DJ style. The TTXUSB, like its predecessor, features user-variable torque. The TTXUSB also delivers versatility and control thanks to an illuminated output bay, a built-in BPM counter, and interchangeable S-shaped or straight tonearms. Best of all, the TTXUSB's built-in USB connector simplifies connection to a computer for fast, professional grade vinyl-to-digital transfer.

As an added benefit, vinyl-to-digital conversion takes just a few mouse clicks thanks to the bundled EZ Vinyl Converter software; a new program available exclusively to Numark that quickly converts vinyl tracks directly to iTunes.

Additional features include digital outputs for direct sampling, Key Lock and ±50% pitch control for unprecedented mixing options. The TTXUSB remains ahead of the game and delivers a new standard in turntables by expanding the possibilities of vinyl.

Key features

• USB connection for easy conversion of vinyl to digital media
• World's first user–adjustable ultra–high torque (2.5kg·cm, 3.7 kg·cm, 4.7 kg·cm) direct–drive motor
• Included EZ Vinyl Converter software (PC) and EZ Audio Converter (Mac) for hassle-free recording
• Patented interchangeable aluminum tonearm system includes both straight and S–shaped tonearms
• Interchangeable pitch fader and button cartridges for club and battle style
• Blue illuminated display provides pitch, RPM, BPM and motor settings
• Aluminum target light and strobe with super–bright white LED
• Solid–core steel top and rubber base construction diminishes vibration and unwanted noise
• Anti–drag aluminum platter reduces excess rotating friction
• Precise cue, height and anti–skate adjustments
• Reverse and adjustable start and brake times
• ±8, 10, 20 and 50% selectable pitch ranges
• Key Lock to maintain any key while changing tempo
• Onboard auto BPM counter
• 33, 45 and 78 RPM with reverse
• Selectable phono/line level output (no ground wire required)
• Detachable power and audio connections, illuminated output bay
• Headshell and 45 adapter included
• Class Compliant: this product is immediately compatible with every current and future version of Mac OS X and iOS and with Windows (98SE and up) operating systems

Specifications

• Turntable Section:
  • Motor: Direct Drive – 16 Pole, 3 phase
  • Start Time: 0-33.33 RPM in 0.2 seconds
  • Braking System: 9 Step Electronic Servo Brake
  • Platter: Dampened Aluminum Die-cast Low Friction Design
  • Speeds: 33.33, 45, and 78 RPM
  • Wow & Flutter: <0.15% WRMS (JIS C5521); Digitally controlled by internal quartz clock
  • Pitch Range: ±8%, ±10%, ±20%, and ±50%
  • Rumble: -58dB (IEC 98A Unweighted); -79dB (IEC 98A Weighted)
  • Torque:
  • H: 4.7 kgfcm; constant torque: 3.7kgfcm; instant torque: 4.7 kgfcm
  • M: 3.7 kgfcm; constant torque: 2.7kgfcm; instant torque: 3.7 kgfcm
  • L: 2.5 kgfcm; constant torque: 1.1kgfcm; instant torque: 2.5 kgfcm
• Tonearm Section:
  • Type: Locking collar based interchangeable tube system; Die-cast Aluminum 3-Bearing Construction
  • Height Range: 0.0 – 6.0 mm
  • Cue System: Dampened Lift Lever, Arm Rest and Arm Clip
  • Balance Weight: 7.0 gram S-weight 75 gram Aluminum Plated w/ 0.0 – 3.5 gram range scale
  • General:
    • Dimensions: 370mm(W) x 460mm(D) x 135mm(H)
    • Weight: 27.7 lbs (12.6 kg)
    • Power Consumption: 65 Watts
    • Minimum System Requirements (PC):
      • Windows 2000/XP/Vista
      • USB 1.1 port
      • Audio Recording program (to capture the audio from your vinyl)
      • Minimum System Requirements (MAC):
        • Mac OS X 10.4.x*
        • USB 1.1 port
        • Audio Recording program (to capture the audio from your vinyl)
        • *This product includes two Macintosh compatible software recording programs on the CD-ROM. The included EZ Converter software requires Mac OS 10.4 or higher.
