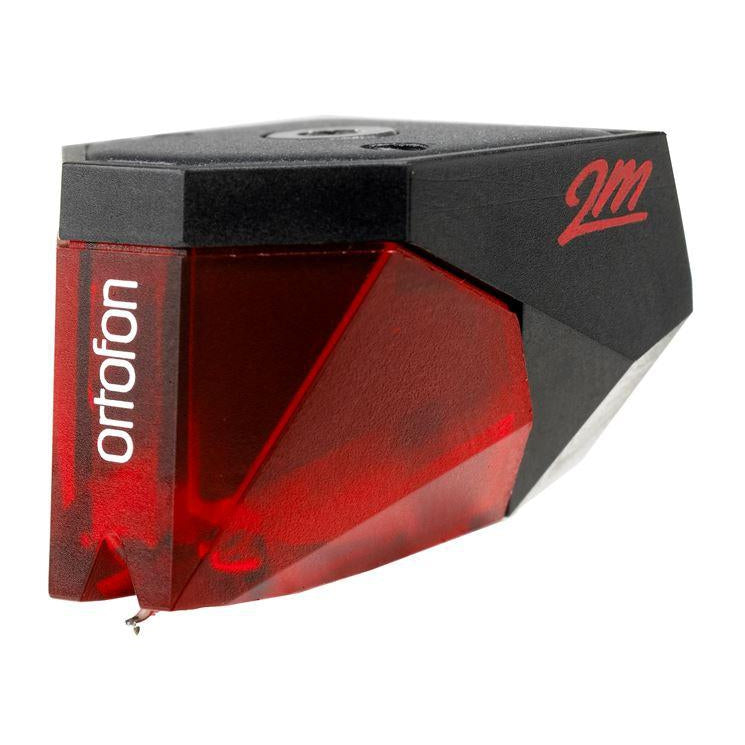

Ortofon 2M Red Verso

Overview

Ortofon's 2M Red is an all-purpose cartridge designed to deliver an open, dynamic sound with a slight touch of warmth. The weight and dimensions of the 2M Red are optimised for the most common turntables, offering a wide range of compatibility. The 2M Red cartridge is built with ‘Hopelex’, an environmentally-friendly material ensuring high-rigidity while eliminating unwanted resonances. The cartridge stylus is a tipped elliptical diamond connected to split pole pins with copper wire. This offers a high level of sonic accuracy at an affordable price.

Each of the 2M Series cartridges has its own individual sonic expression, and all five models together represent the ensemble of five classic variations. The 2M Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth

The 2M series of cartridges feature Ortofon’s trademark split pole pins, an invention that enables moving magnet cartridges to have a flat frequency response, as with a moving coil cartridge. Split pole pins were invented by Ortofon, and were originally presented in the 500 series and OM Super series.

Key features

• Improved engine, which provides an output of 5.5mV
• Optimised sound reproduction and high level of sonic accuracy
• Tipped Elliptical diamond
• Split pole pins with a copper wire
• All-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth
• Supplied with 2 different sets of screws (M2.5 x 5 & M2.5 x 7)
• Stylus brush included

Specifications

• Output voltage at 1 kHz, 5cm/sec: 5.5 mV
• Channel balance at 1 kHz: 1.5 dB
• Channel separation at 1 kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3 dB: 20 - 22,000 Hz
• Frequency response: 20 - 20,000 Hz +3/-1 dB
• Tracking ability at 315 Hz at recommended tracking force: 70 μm
• Compliance, dynamic, lateral: 20 μm/mN
• Stylus type: Eliptical
• Stylus tip radius: r/R 8/18 μm
• Tracking force range: 1.6 - 2.0 g (16 - 20 mN)
• Tracking force recommended: 1.8 g (18mN)
• Tracking angle: 20°
• Internal impedance, DC resistance: 1.3 kOhm
• Internal inductance: 700 mH
• Recommended load resistance: 47 kOhm
• Recommended load capacitance: 150 - 300 pF
• Cartridge colour, body/stylus: Black/Red
• Weight: 7.2 g
• Dimensions: 24mm x 18.5mm x 18mm
