Overview

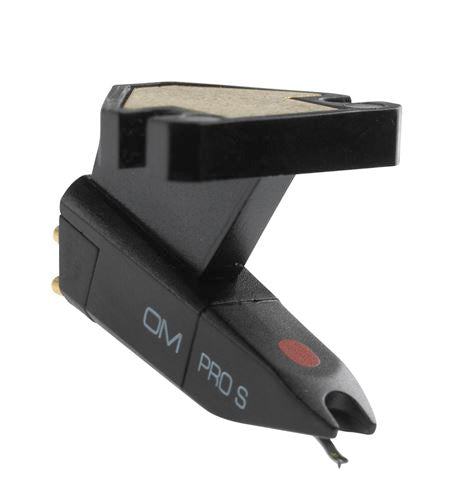

The OM version of the Ortofon Pro S Cartridge is designed for mounting onto Ortofon headshells. This package includes a single cartridge and preinstalled stylus. The Pro S retains all the sonic attributes of the Pro Silver, but features a wider stylus for low wear and enhanced durability.
Key features
- Headshell Mounted Cartridge Body
- Preinstalled Stylus
Specifications
| Output Voltage | 5 mV, 5 cm/s @ 1 kHz |
| Channel Balance | 2 dB @ 1 kHz |
| Channel Separation | 20 dB @ 1 kHz 15 dB @ 15 kHz |
| Frequency Range | 20 Hz to 20 kHz, -3 dB |
| Frequency Response | 20 Hz to 18 kHz, +/- 2 dB |
| Tracking Ability | Recommended Tracking Force: 70 μm at 315 Hz |
| Compliance | 7 μm/mN, dynamic, lateral |
| Stylus | Type: Spherical Tip Radius: 18 μm |
| Tracking Force | 3 to 5 g (30 to 50 mN) Recommended: 4.0 g (40 mN) |
| Angle | Tracking: 20° |
| Impedance | Internal: 750 Ω, DC Resistance |
| Inductance | Internal: 450 mH |
| Recommended Load Impedance | 47 kΩ |
| Recommended Load Capacitance | 200 to 600 pF |
| Weight | 0.6 oz (18.5 g) |
