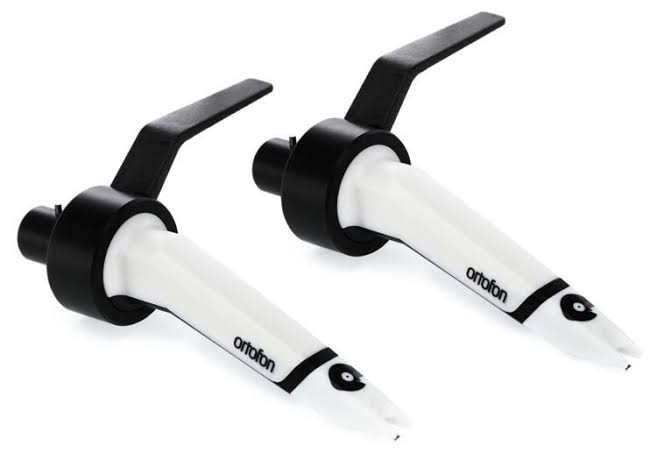

Concorde MKII Scratch
The Concorde Scratch is intended especially for the disciplines of scratch and back-cueing. It allows turntablist and scratching DJs to achieve new levels of performance with unprecedented tracking ability and extra high output.
specifications
-
Channel balance at 1 kHz
1 dB
-
Output voltage at 1 kHz, 5cm/sec
10 mV
-
Channel seperation at 1 kHz
22 dB
-
Channel seperation at 15 kHz
15 dB
-
Tracking ability at 315Hz at recommended tracking force
120 μm
-
Compliance, dynamic, lateral
14 μm/m N
-
Stylus type
Spherical
-
Stylus tip radius
R 18 μm
-
Tracking force range
3 - 5 g
-
Tracking force, recommended
4 g
-
Internal impedance, DC resistance
1200 Ohm
-
Cartridge weight
18,5 g
-
Recommended load resistance
47 kOhm
-
Internal inductance
850 mH
-
Recommended load capacitance
200-400 pF
-

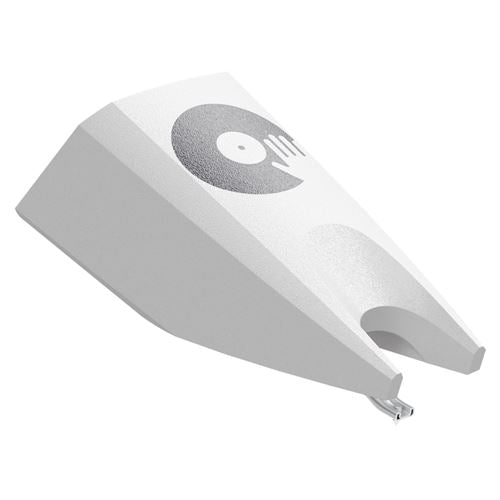

Replacement stylus
