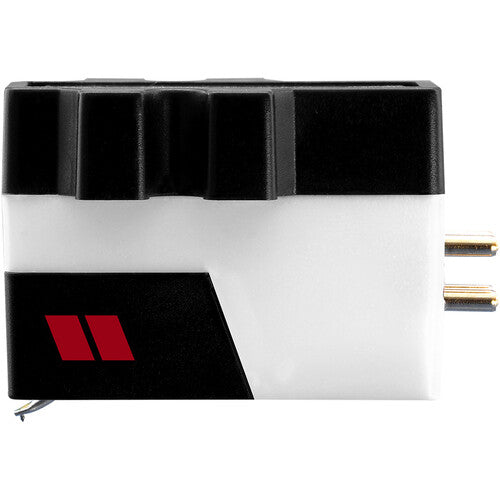

Ortofon VNL
Regular price
Rp. 2.000.000,00
Rp. 2.000.000,00
Overview
Engineered with extra resistance to scratching and backspinning, the Ortofon VNL Moving Magnet Cartridge is designed specifically to fit the needs of DJs, turntablists, and portablists. This introductory package includes 3 different styli, so you can get the optimal feel for your particular style.
The VNL offers high-performance tracking that's not only well suited to both DVS and real vinyl, but also up to the demanding needs of portable turntable enthusiasts who regularly play in unusual locations—where isolating the decks from vibrations can be almost impossible. Record wear during back-cueing and scratching is kept to a minimum by the sturdy spherical design.
Key features
- Tailored For Turntablists & Portablists
- Resistance to Scratching & Backspinning
- High Tracking Performance
- 3 Styli Included for Different DJ Styles
- High Rigidity, Resonance-Free
- Easy Headshell Mounting
- Optimal Balance of Output and Fidelity
Specifications
| Stylus Type | Spherical |
| Tracking Force | 4 g |
| Output Voltage | 6 mV |
| Frequency Range | 20 Hz to 20 kHz |
| Channel Separation @ 1 kHz | 20 dB |
| Anti-Skating Adjustment | For Best Back-Cueing Performance, Use 0 |
| Internal Impedance | DC Resistance: 750 Ohms |
| Internal Inductance | 450 mH |
| Recommended Load | Resistance: 47 Kilohms |
| Recommended Load Capacitance | 200 to 600 pF |
| Cartridge Weight | 0.23 oz / 6.5 g |
| Replacement Stylus | VNL I, VNL II, or VNL III |
| Tracking Ability | At 315 Hz at Recommended Tracking Force: VNL I: 100 μm VNL II: 90 μm VNL III: 90 μm |
| Dynamic Compliance | Lateral Dynamic: VNL I16 μm/m N VNL II15 μm/m N VNL III14 μm/m N |
| Package Weight | 0.11 lb |
| Box Dimensions (LxWxH) | 4.6 x 3.5 x 1.3" |
