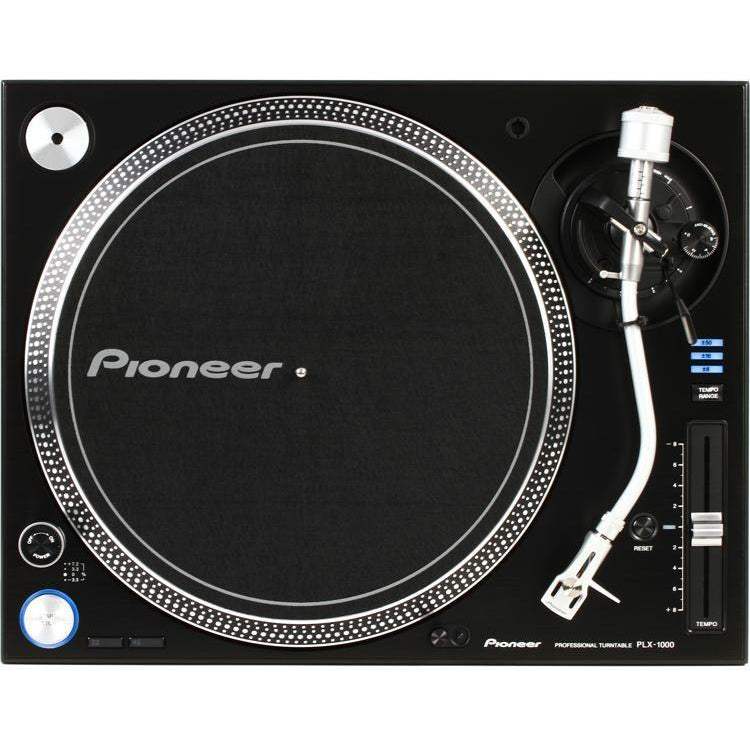

Pioneer DJ PLX-1000 (Used)

Overview

The PLX-1000 is precision engineered for the booth, drawing on 50 years’ experience of making high-end turntables. The result is a familiar layout with some next generation improvements, including a high-torque direct drive system, multi-pitch control, club-grade build and sound quality, and detachable power and audio cables. It’s solidly built for excellent vibration damping and ultra-precise, high-grade audio playback.

Simply add your choice of cartridge and stylus to the PLX-1000 (not included) and combine with your mixer for an ideal setup for turntablists. An ideal match for DJs is the handmade PC-X10 (sold separately).

Key features

• TURN THE TABLES

  The high-torque direct drive ensures stable rotation and exceptional control – and it reaches 33⅓ rpm in just 0.3 seconds thanks to a starting torque of 4.5kg/cm (or more).

• EXCELLENT SOUND DESIGN

  The PLX-1000’s heavy-mass, die-cast zinc chassis prevents resonance and vibrations. The lower part of the unit is reinforced with 8mm-thick resin, plus 9mm-thick, vibration-damping material at the base. Plus the rubber-insulated tone arm reduces howling effects, while rubber and springs on the dampening parts of the insulator absorb external vibrations.

• PICK UP THE PACE

  Multi-tempo control lets you instantly pick up or slow down the track to ±8%, ±16% and ±50%, while a simple reset button instantly reverts to ±0%.

• FLEXIBLE CONNECTIVITY

  Interchangeable power and audio cables can be easily connected and replaced, and pro-grade gold-plated RCA jacks ensure low impedance and an amazing sound quality.

Specifications

Width

• 453 mm

Height

• 159 mm

Depth

• 353 mm

Weight

• 14.6 kg

Drive Method

• Quartz lock, servo-type, direct drive


Platter

• Aluminium, die-casting diameter: 332 mm


Motor

• 3-phase, brushless DC motor


Braking System

• Electronic brake


Rotation Speed

• 33⅓-45 rpm


Rotation Adjustment Range

• ±8, ±16, ±50 %


WOW and Flutter

• < 0.01 % (Measured by obtaining signal from built-in frequency generator of motor assembly.)


Signal-to-Noise Ratio

• 70 dB


Starting Torque

• > 4.5 kgf・cm


Start Time

• Within 0.3 sec (at 33⅓ rpm)


Arm Type

• Universal type S-shape tone arm
• Gimbal-supported type bearing structure
• Static balance type

Overhang

• 15 mm


Effective Lenght

• 230 mm


Tracking Error

• Within 3°


Height Adjustment Range

• 6 mm


Stylus Pressure Variable Range

• 0-4 g (1 scale 0.1 g)


Proper Cartridge Weight

• 2.5-12 g (includes mounting materials)


Outputs

• 1 ANALOGUE (RCA)
