Rane DJ Seventy

Overview

Same DNA, Intuitive Layout Introducing the RANE DJ SEVENTY Serato DJ Mixer

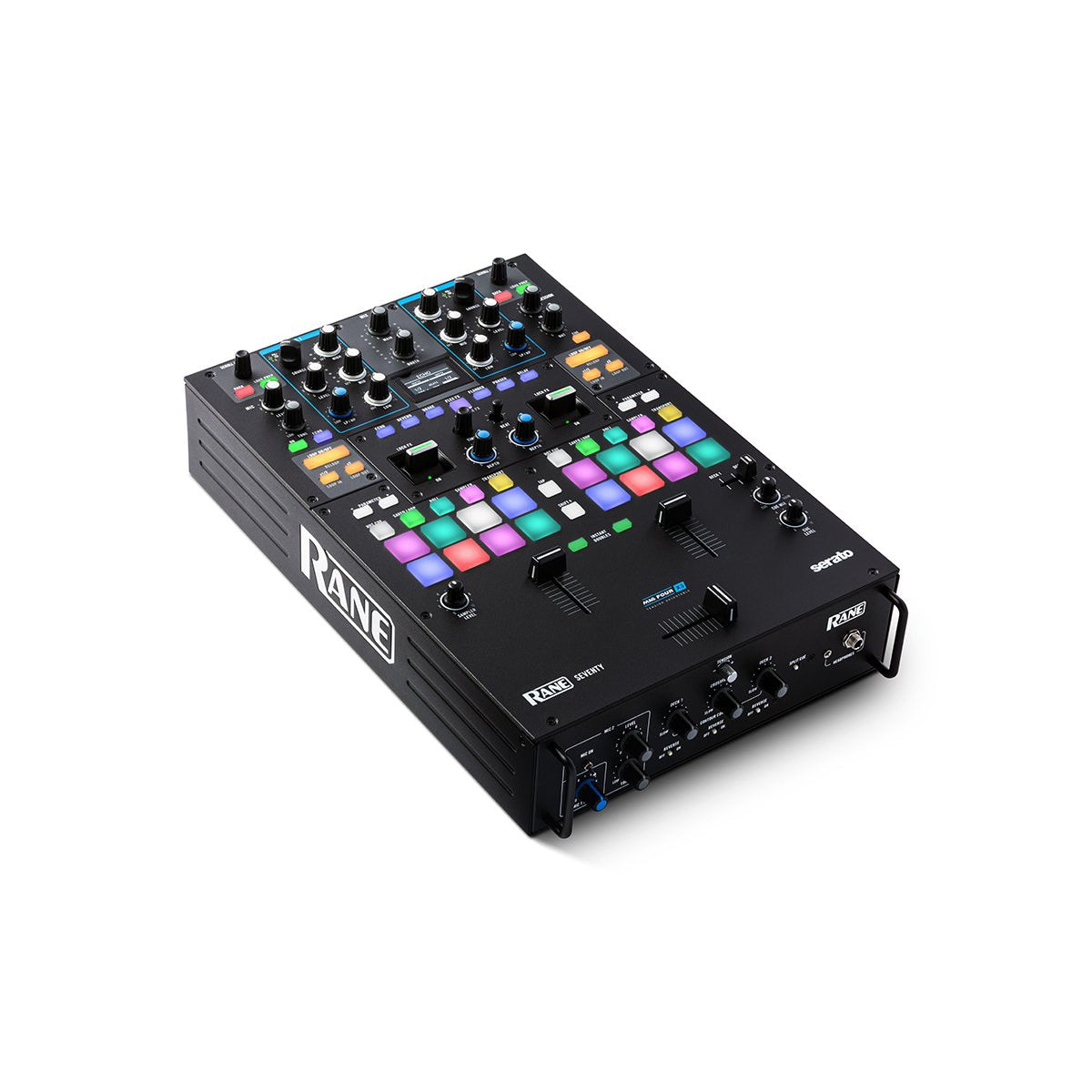

Introducing the SEVENTY, the latest addition to RANE’s solid steel, Serato DJ battle ready DJ mixer family. Built from the same intricate DNA that makes every RANE product a standout, the SEVENTY introduces unique new features and an intuitive workflow to push DJ performances to the next level. Packed into a solid, portable mixer, the SEVENTY has the toughness for week in/week out touring, satisfying even the most demanding DJs who insist on no compromise durability, functionality and expressive creativity.
MAG FOUR Faders
In addition to an ultra intuitive layout, the SEVENTY introduces three new ultra light MAG FOUR faders. This new design is the lightest yet and delivers high quality patented technology, along with an external crossfader tension adjust.
FX, Loops & Instant Doubles
The SEVENTY’s all new layout has been engineered to put the DJ’s creative performance capability firmly in the driving seat. Six radio style DJ FX buttons give instant access to the internal post fader FLEX FX and Serato DJ’s software FX. The dual dedicated loop sections and Instant Double buttons are intuitively laid out for immediate, easy access.
Performance Pads
Center stage on the SEVENTY are 16 Akai Professional dual layer MPC pads with independent mode controls per deck including Hot Cue, Pitch ‘n Time, Saved Loops, Sampler, Roll and Transport.
DJ Mixer Mainstays
Everything you demand from a mixer is here, perfectly positioned with your performance in mind. A 3 band isolator EQ, plus dedicated high/low pass filters per channel; Serato playlist navigation and control; dual diecast aluminum FX paddles with 180 degree rotation; a radiant OLED display for accurate visual feedback of core mixer parameters. Combine all of this with an industry leading signal to noise ratio of 114dB, the RANE SEVENTY raises the standard of DJ performance to new heights in its category.
Flexible Connectivity
With the SEVENTY, any performance scenario is covered. Two DJs can perform simultaneously and handover effortlessly via the unit’s dual USB connections. Performance driven connectivity, including switchable Phono/CD inputs per DJ deck, an RCA Aux line input per deck and an RCA Session input/output for battle teams, provides complete hook up flexibility. With balanced XLR master outputs, dual 3.5mm & ¼ inch headphone outputs, and ¼ inch jack booth outputs, whatever your next DJ set needs, the SEVENTY provides. Rounding out the SEVENTY’s arsenal of inputs are two switchable line/microphone combo inputs, outfitted with independent level and tone controls, plus echo level for both microphones.
Seamless Handoffs
Make complicated handoffs a thing of the past with RANE’s SEVENTY, two DJs can perform simultaneously and handover effortlessly via the unit’s conveniently located dual USB connections. Are you seeking the authentic DJ experience while retaining all the modern functionality your performance demands? This is your answer! SEVENTY features assignable USB controller inputs for RANE TWELVE motorized control turntable alongside input controls on each deck to switch between dual USB inputs, phono, line and aux channel inputs.

Key features

Specifications

Digital Audio
Converters	AKM High Definition Audio; 24-bit PCM, 48 kHz
Digital Signal Processing	32-bit, floating point, double precision
Dynamic Range (A-weighted, unity gain)	ADC DAC CD Input to Analog Output CD Input to USB Output USB Input to Analog Output	114 dB 114 dB 114 dB 114 dB 114 dB
Inputs
Microphone 1/2 (Combo XLR/1/4" [6.35 mm] TRS, Mic/Line switchable)	Analog Gain Maximum Input Gain Trim	30 dB (Mic), 4.75 dB (Line) 0.126 Vrms (Mic), 2.3 Vrms (Line) Off to +20 dB (unity at center)
Aux Inputs 1/2 (RCA stereo pairs)	Maximum Input Dynamic Range (A-weighted)	4 Vrms 114 dB
CD/Phono Inputs 1/2 (RCA stereo pairs, switchable)	CD Maximum Input Dynamic Range (A-weighted) Phono RIAA Curve Gain (@ 1 kHz) Maximum Input (@ 1 kHz)	Line 4 Vrms 114 dB RIAA +0.1/-0.2 dB 30 dB 126 mV
Session Input (RCA stereo pair)	Maximum Input Dynamic Range (A-weighted)	4 Vrms 114 dB
Outputs
Main Outputs (XLR)	Frequency Response Maximum Output THD+N (@ 1 kHz, 4 Vrms)	20 Hz to 20 kHz (± 0.2 dB) 8 Vrms 0.002%
Booth Outputs (1/4"/6.35 mm TRS)	Frequency Response Maximum Output THD+N (@ 1 kHz, 4 Vrms)	20 Hz to 20 kHz (± 0.2 dB) 8 Vrms 0.002%
Session Outputs (RCA stereo pair)	Frequency Response Maximum Output THD+N (@ 1 kHz, 2 Vrms)	20 Hz to 20 kHz (± 0.2 dB) 4 Vrms 0.002%
Headphone Outputs (1/4"/6.35 mm and 1/8"/3.5 mm TRS)	Maximum Output Voltage THD+N (@ 1 kHz, 2 Vrms) Output Power Controls	4 V (no load) 0.003% 96 mW (50 ohms) On/Off muting
General
Display	1.6” OLED (diagonal)
Pads	(16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
Faders	(3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)
Connectors	(2) XLR outputs (Main) (2) 1/4” (6.35 mm) TRS outputs (Booth) (4) RCA stereo input pairs (Deck 1–2) (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2) (1) RCA stereo input pair (Session) (1) RCA stereo output pair (Session) (1) 1/4” (6.35 mm) TRS output (Headphones) (1) 1/8” (3.5 mm) TRS output (Headphones) (2) USB Type-A ports (Deck 1–2 USB Controllers) (2) USB Type-B ports (1) IEC power cable input
Power	Connection: IEC Voltage: 100–240 V, 50/60 Hz Consumption: 30 W
Dimensions (width x depth x height)	11.2” x 17.5” x 4.13” 285 x 445 x 105 mm
Weight	12.3 lbs. 5.6 kg

Specifications are subject to change without notice.
