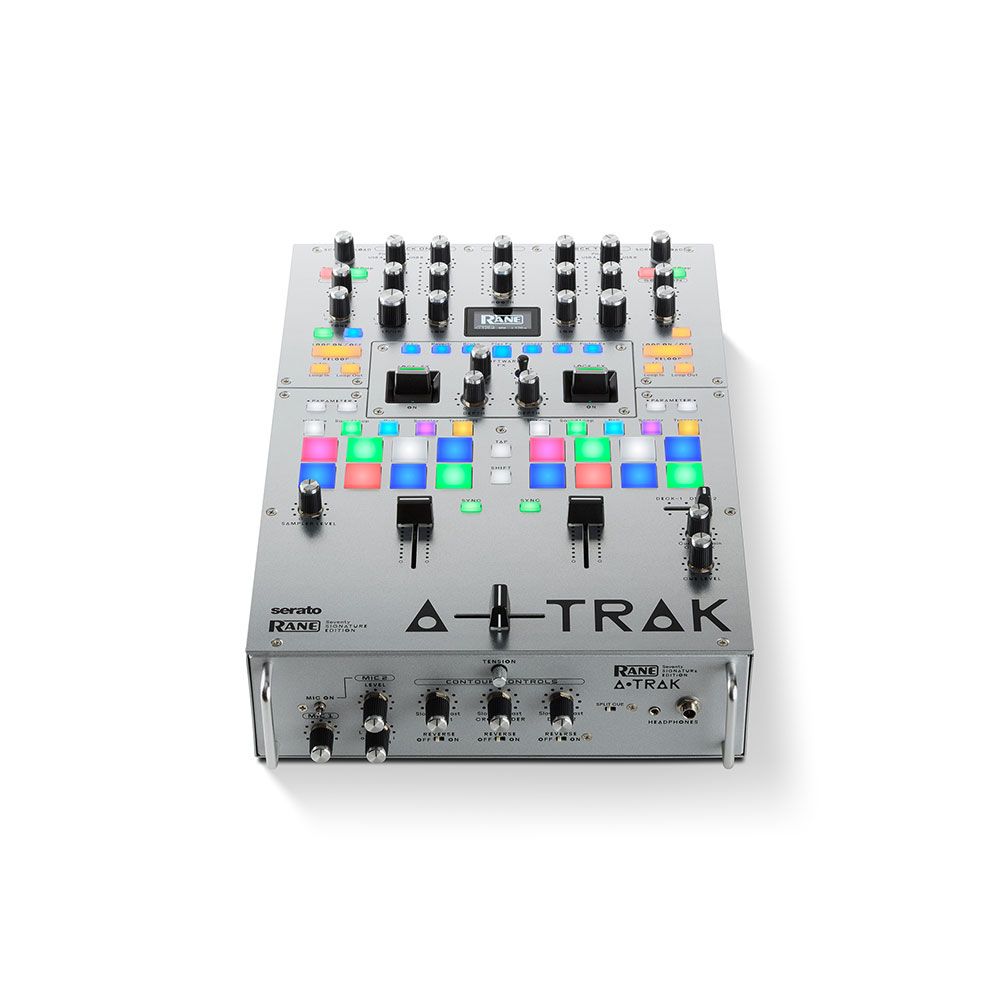

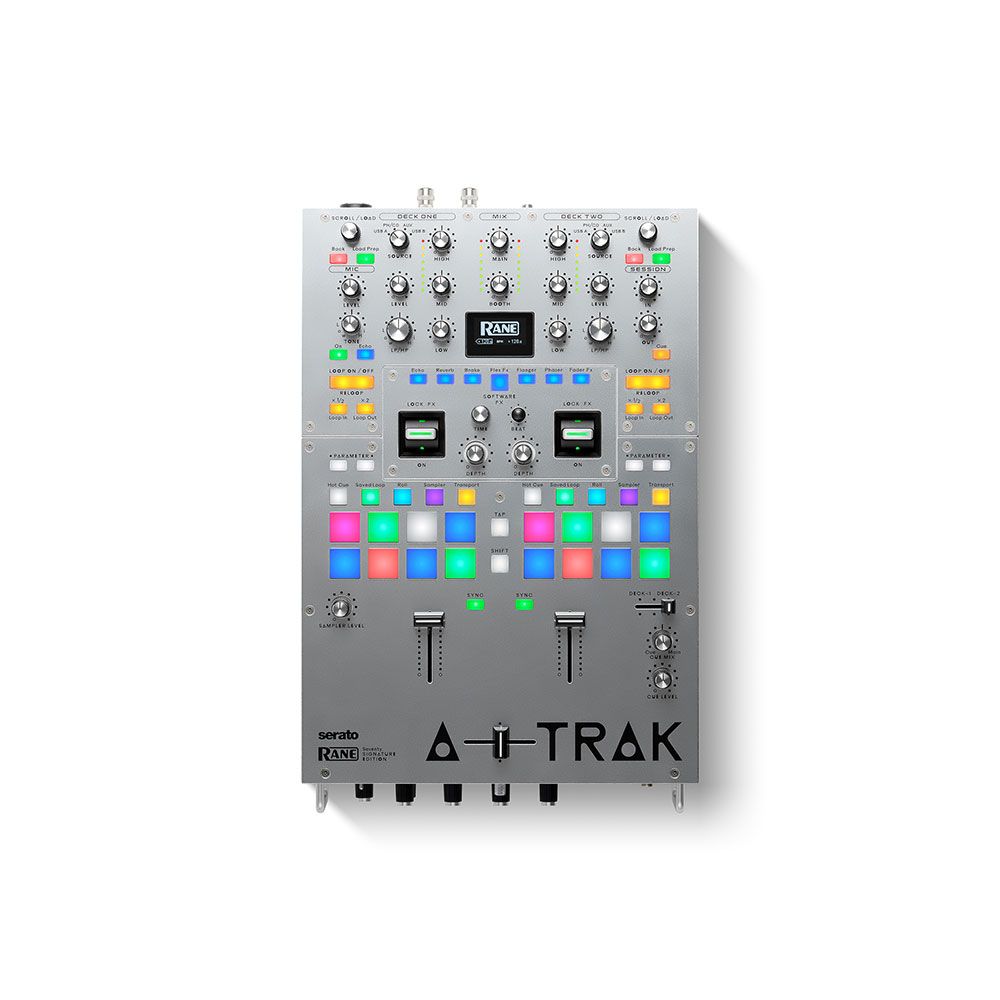

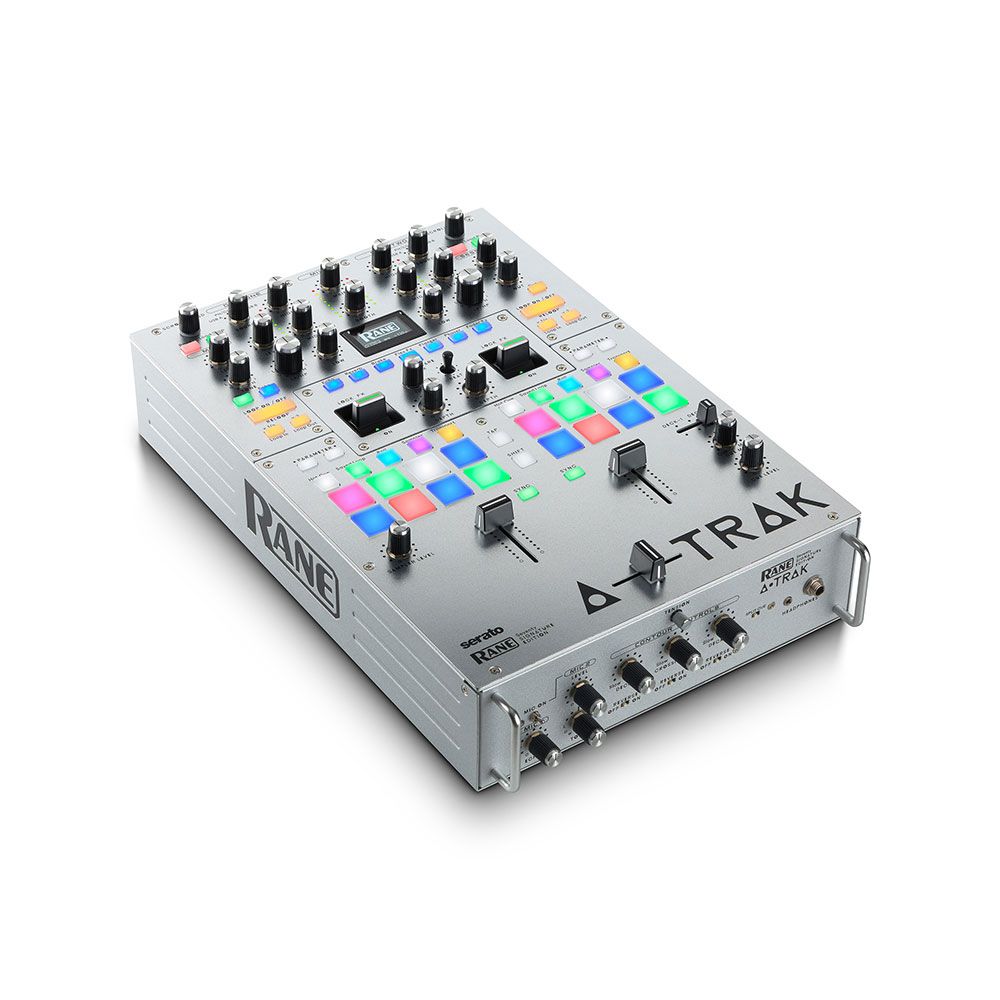

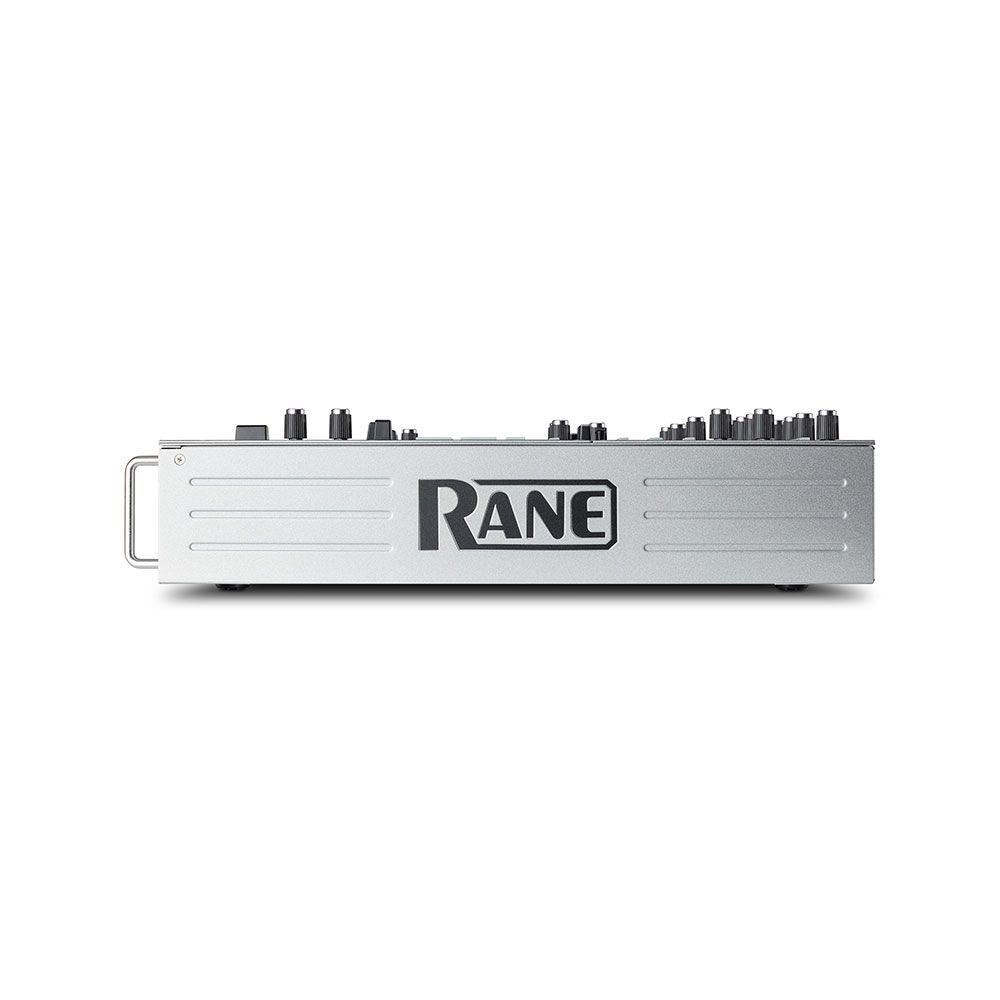

Rane DJ Seventy A-Trak Signature Edition

Rane DJ Seventy A-Trak Signature Edition

Rp. 29.000.000,00
Rp. 29.000.000,00 Rp. 29.000.000,00
Sale Sold out

Pushing the Boundaries of
Turntablist Performance

Sonic innovation in a battle-tested frame

Tech Specs

Digital Audio
Converters
  • AKM High Definition Audio; 24-bit PCM, 48 kHz
Digital Signal Processing
  • 32-bit, floating point, double precision
Dynamic Range
(A-weighted, unity gain)
  • ADC
  • DAC
  • CD Input to Analog Output
  • CD Input to USB Output
  • USB Input to Analog Output
  • 114 dB
  • 114 dB
  • 114 dB
  • 114 dB
  • 114 dB
Inputs
Microphone 1/2
(Combo XLR/1/4" [6.35 mm] TRS, Mic/Line switchable)
  • Analog Gain
  • Maximum Input
  • Gain Trim
  • 30 dB (Mic), 4.75 dB (Line)
  • 0.126 Vrms (Mic), 2.3 Vrms (Line)
  • Off to +20 dB (unity at center)
Aux Inputs 1/2
(RCA stereo pairs)
  • Maximum Input
  • Dynamic Range (A-weighted)
  • 4 Vrms
  • 114 dB
CD/Phono Inputs 1/2
(RCA stereo pairs, switchable)
  • CD
  • Maximum Input
  • Dynamic Range (A-weighted)
  • Phono
  • RIAA Curve
  • Gain (@ 1 kHz)
  • Maximum Input (@ 1 kHz)
  • Line
  • 4 Vrms
  • 114 dB
  • RIAA
  • +0.1/-0.2 dB
  • 30 dB
  • 126 mV
Session Input
(RCA stereo pair)
  • Maximum Input
  • Dynamic Range (A-weighted)
  • 4 Vrms
  • 114 dB
Outputs
Main Outputs
(XLR)
  • Frequency Response
  • Maximum Output
  • THD+N (@ 1 kHz, 4 Vrms)
  • 20 Hz to 20 kHz (± 0.2 dB)
  • 8 Vrms
  • 0.002%
Booth Outputs
(1/4"/6.35 mm TRS)
  • Frequency Response
  • Maximum Output
  • THD+N (@ 1 kHz, 4 Vrms)
  • 20 Hz to 20 kHz (± 0.2 dB)
  • 8 Vrms
  • 0.002%
Session Outputs
(RCA stereo pair)
  • Frequency Response
  • Maximum Output
  • THD+N (@ 1 kHz, 2 Vrms)
  • 20 Hz to 20 kHz (± 0.2 dB)
  • 4 Vrms
  • 0.002%
Headphone Outputs
(1/4"/6.35 mm and 1/8"/3.5 mm TRS)
  • Maximum Output Voltage
  • THD+N (@ 1 kHz, 2 Vrms)
  • Output Power
  • Controls
  • 4 V (no load)
  • 0.003%
  • 96 mW (50 ohms)
  • On/Off muting
General
Display
  • 1.6” OLED (diagonal)
Pads
  • (16) velocity-sensitive multi-color back-lit pads (8 per deck, 10 modes each)
Faders
  • (3) MAG FOUR tension-adjustable faders (2 channel/line faders, 1 crossfader)

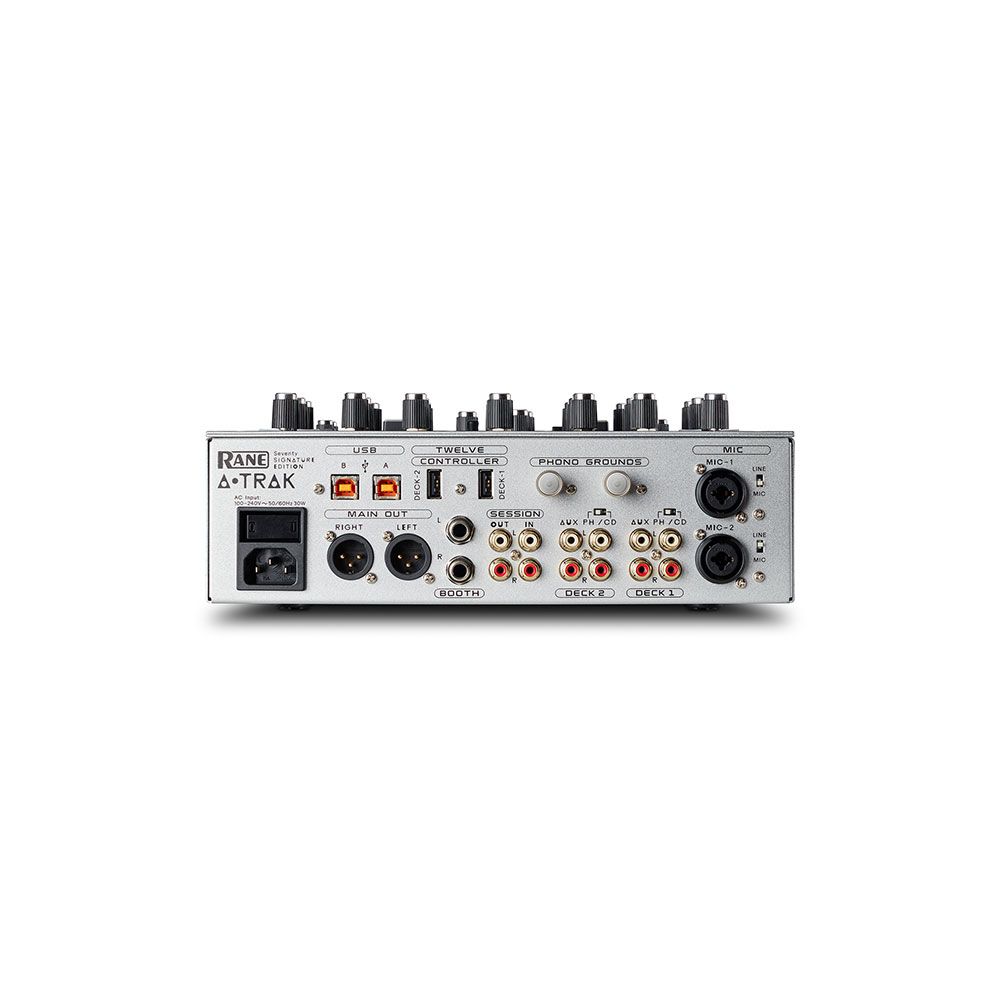

Connectors
  • (2) XLR outputs (Main)
  • (2) 1/4” (6.35 mm) TRS outputs (Booth)
  • (4) RCA stereo input pairs (Deck 1–2)
  • (2) XLR / 1/4” (6.35 mm) TRS inputs (Mic 1–2)
  • (1) RCA stereo input pair (Session)
  • (1) RCA stereo output pair (Session)
  • (1) 1/4” (6.35 mm) TRS output (Headphones)
  • (1) 1/8” (3.5 mm) TRS output (Headphones)
  • (2) USB Type-A ports (Deck 1–2 USB Controllers)
  • (2) USB Type-B ports
  • (1) IEC power cable input
Power
  • Connection: IEC
  • Voltage: 100–240 V, 50/60 Hz
  • Consumption: 30 W
Dimensions
(width x depth x height)
  • 11.2” x 17.5” x 4.13”
  • 285 x 445 x 105 mm
Weight
  • 12.3 lbs.
  • 5.6 kg

Specifications are subject to change without notice.
