Steinberg UR22C Recording Pack
Steinberg UR22C Recording Pack
Regular price
Rp. 5.680.000,00
Regular price
Sale price
Rp. 5.680.000,00
Unit price
per
Overview

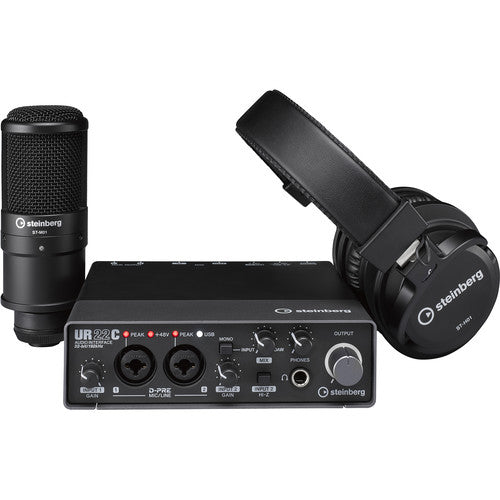

The Steinberg UR22C RP Recording Pack bundles the company's UR22C interface with a Steinberg ST-M01 Studio Condenser Microphone, and a pair of Steinberg ST-H01 Headphones. The interface offers 32-bit converters for a wide dynamic range, and records at sample rates of up to 192 kHz for capturing detailed sonic nuances.
Use the microphone for recording your voice and the headphones for monitoring while recording or mixing. Whether you are recording yourself at the home studio or want to track high-quality audio on the road, the UR22C Recording Pack will come in handy for anyone who wishes to record music.
Key features
- High-Speed USB 3.0 Computer Interface
- Includes ST-M01 Studio Condenser Mic
- Includes ST-H01 Headphones
- Included Recording Software
- 32-Bit A/D for Increased Dynamic Range
- 192 kHz Recording for High Resolution
- Record Mics, Line, and Hi-Z Instruments
- Monitor and Headphone Output Jacks
- Bus-Powered with Optional 5V DC Port
- Works with Mac, Windows, and iOS
Specifications
| Form Factor | Tabletop |
| Display | None |
| Channels of I/O | Analog: 2 Input / 2 Output |
| Max Sample Rate/Resolution | 192 kHz / 32-Bit |
| Number of Mic Preamps | 2 |
Connectivity
| Analog Audio I/O | 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input 2 x 1/4" TRS Balanced Monitor Output 1 x 1/4" TRS Unbalanced Headphone Output |
| Phantom Power | +48 V (Selectable on Individual Inputs) |
| Digital Audio I/O | None |
| Host Connection / USB | 1 x USB Type-C (USB 3.0 / 3.1 Gen 1) |
| MIDI I/O | 1 x DIN 5-Pin Input 1 x DIN 5-Pin Output |
Performance
| Frequency Response | Mic Inputs: 20 Hz to 22 kHz /-0.3 Outputs: 20 Hz to 22 kHz /-0.2 |
| Gain/Trim Range | Mic Inputs: +6 dB to +60 dB Hi-Z Inputs: +0 dB +54 dB Line Inputs: -10 dB to +44 dB |
| Max Input Level | Mic Inputs: +6 dBu (Balanced) Hi-Z Inputs: +9 dBV (Unbalanced) Line Inputs: +22 dBu (Balanced) |
| Max Output Level | Monitor Outputs: +12 dBu (Balanced) |
| Headphone Output Power | 15 mW per Channel |
| Impedance | Mic Inputs: 4 Kilohms (Balanced) Hi-Z Inputs: 1 Megohms (Unbalanced) Line Inputs: 18.5 Kilohms (Balanced) Outputs: 150 Ohms (Balanced) Headphone Outputs: 40 Ohms (Unbalanced) |
| Dynamic Range | Inputs: 102 dB |
| THD+N | Mic Inputs: 0.003% Monitor Outputs: 0.0015% |
Digital Audio
| Sample Rates | Up to 192 kHz |
| Bit Depths | Up to 32-Bit |
Compatibility
| OS Compatibility | Windows 7 / 8.1 / 10 macOS 10.12 or Later iOS 10 or Later |
| Processor Requirement | Mac: 2 GHz Intel Core i3 PC: 2 GHz Intel Core i3 PC: 2 GHz AMD |
| RAM Requirements | 2 GB |
| Storage Requirements | 1200 MB |
| Minimum Display Resolution | 1280 x 800 |
| Internet Connection | Required for Registration, Software/Driver Download |
Power
| Power Requirements | AC/DC Power Adapter (Not Included), USB Bus Power |
Physical
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Dimensions | 62.6 x 62.6 x 18.5" / 159 x 159 x 47 cm |
| Weight | 2.2 lb / 1.0 kg |
Packaging Info
| Package Weight | 6.45 lb |
| Box Dimensions (LxWxH) | 19.5 x 10.1 x 6" |
In the Box
- Steinberg UR22C Recording Pack with 2x2 USB Gen 3.1 Audio Interface, Headphones & Studio Mic
- ST-H01 Studio Monitor Headphones
- ST-M01 Studio Condenser Microphone
- USB 3.0 cable (3.1 Gen 1, Type-C to Type-A, 3.3' / 1.0 m)
- • CUBASE AI Download Information
- Additional Software License Information
- Limited 1-Year Warranty
