Regular price Rp. 4.600.000,00 Sale

Overview

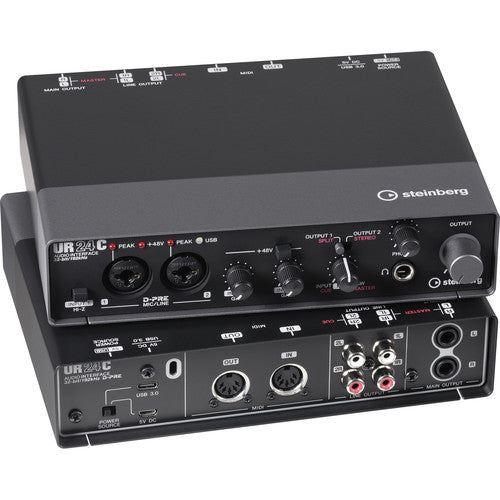

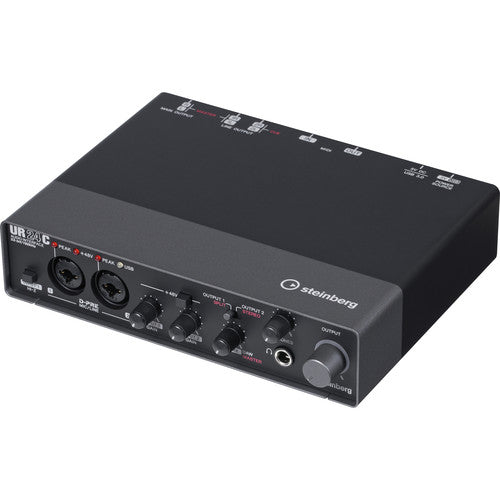

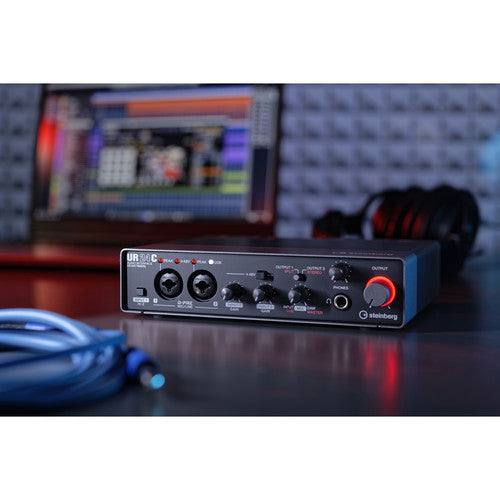

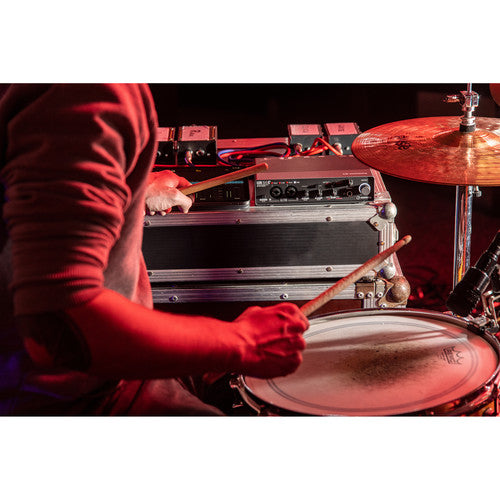

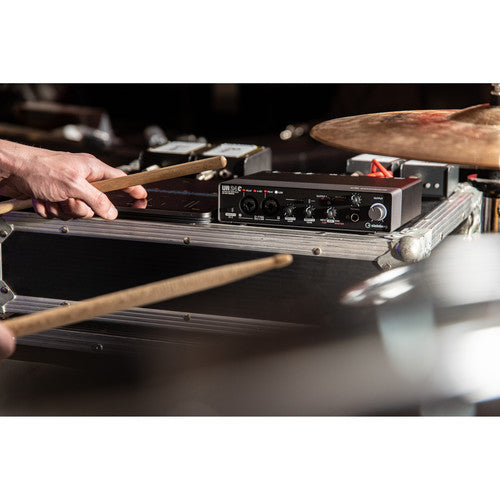

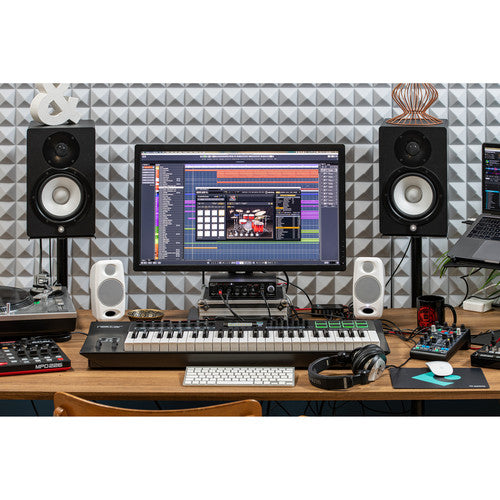

The Steinberg UR24C 2x4 USB Gen 3.1 Audio Interface is designed for two primary purposes: to give you impeccable sound recording on the go and to facilitate cue mixes during live sets. Make use of its 32-bit converters for a wide dynamic range, and record at sample rates of up to 192 kHz for capturing detailed sonic nuances. Whether you are recording yourself at the home studio or performing DJ sets at live shows, the UR24C will come in handy.

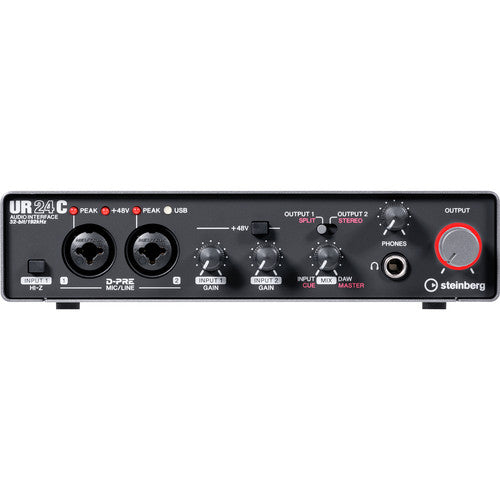

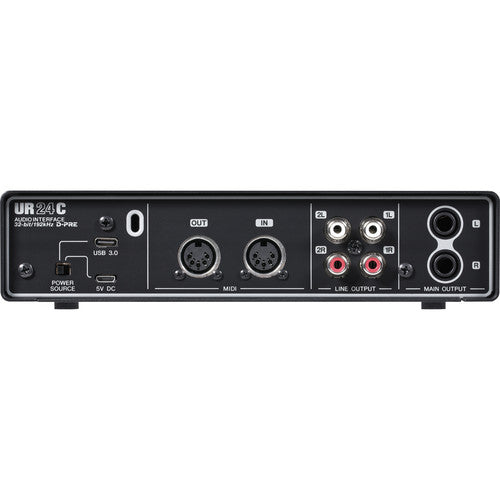

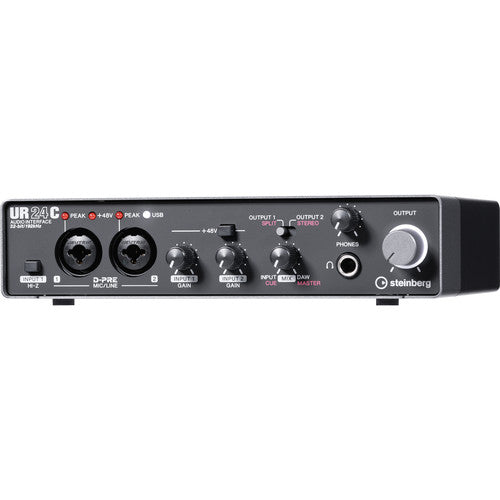

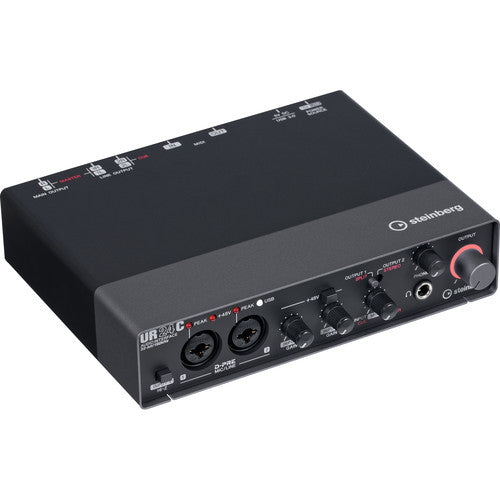

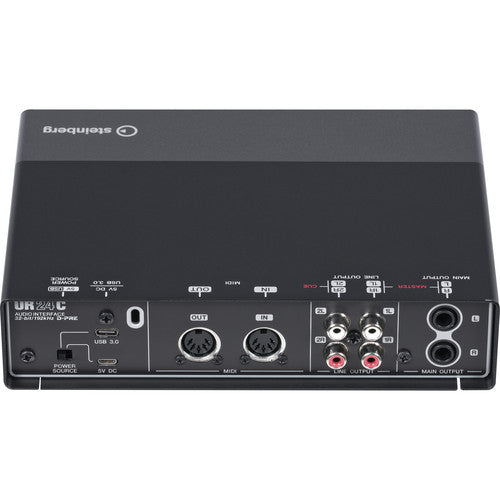

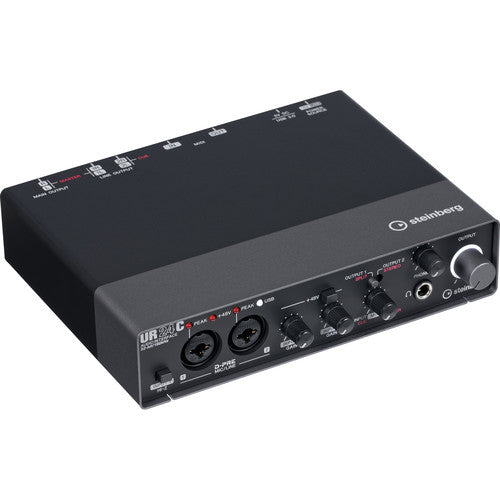

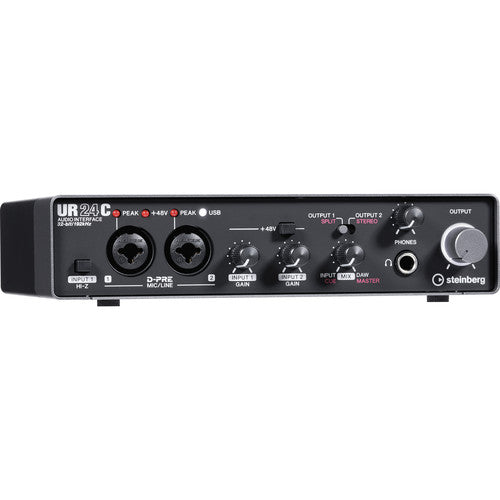

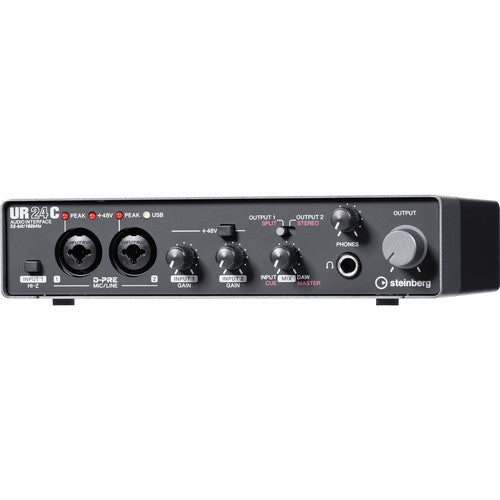

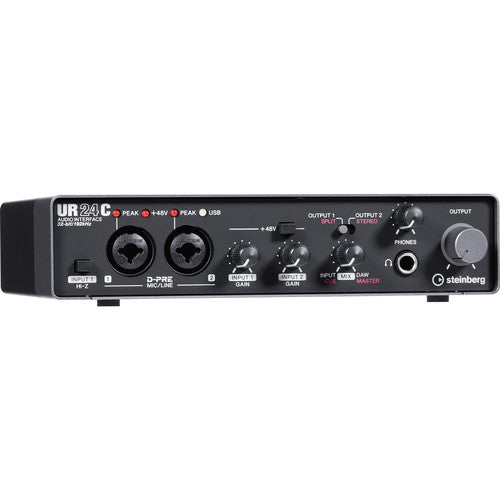

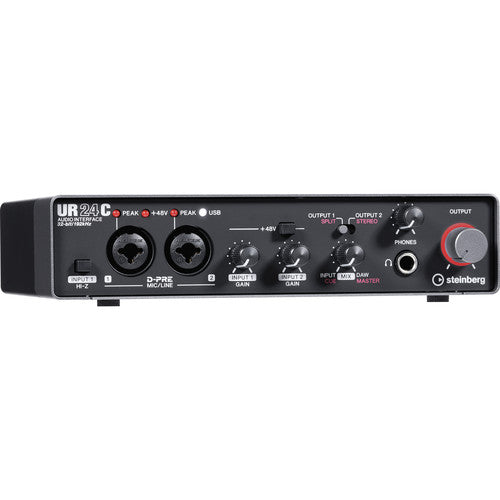

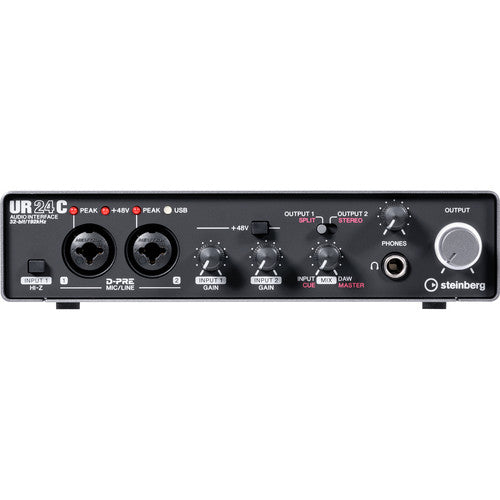

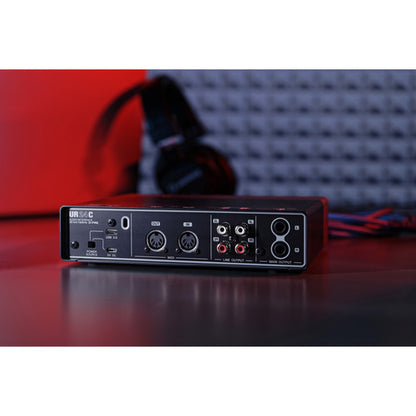

The interface offers two combo XLR-1/4" inputs, one of which can accept Hi-Z instruments, so you can record your basses and guitars direct, with fine degrees of resolution. Connect your monitors (available separately) via two 1/4" TRS jacks in the back of the unit, or make use of the 1/4" headphone output on the front panel to monitor privately. You'll also find four line outputs, which can come in handy for providing click tracks to band members on stage or backing tracks to the house.

While you're recording, make use of the Mix knob to ensure that you hear your sound free of latency. When you're DJing, put the Mix knob into DJ mode, and put your cue mix on the right side of the headphones, and your mono master on the left. Furthermore, connect your favorite MIDI devices over the 5-pin DIN MIDI I/O jacks.

The interface can communicate over a USB GEN 3.1 connection for seamless integration with Mac and Windows computers. The port is also backwards compatible for USB 2.0. Even iOS devices running iOS 10 or later are supported, so you can record straight to your iPad.

Multiple effects are included, such as REV-X reverb and guitar amplifier emulations. For home recording and production, Cubasis LE and Cubase AI are included, as is a software, zero-latency monitoring matrix called dspMixFx. The interface is powered over USB, though you can also use a separately available 5V DC adapter.

Key features
  • High-Speed USB 3.0 Computer Interface
  • 32-Bit A/D for Increased Dynamic Range
  • 192 kHz Recording for High Resolution
  • 2 Monitor Modes: DAW and DJ
  • Mix Knob for Eliminating Latency
  • 4 Line Outs and 1 Headphone Out
  • MIDI I/O over 5-Pin DIN Jacks
  • Bus-Powered with Optional 5V DC Port
  • Works with Mac, Windows, and iOS
  • Included Recording Software
Specifications
Form Factor Tabletop
Display None
Channels of I/O Analog:
2 Input / 4 Output
Max Sample Rate/Resolution 192 kHz / 32-Bit
Number of Mic Preamps 2
Connectivity
Analog Audio I/O 2 x Combo XLR-1/4" TRS Balanced/Unbalanced Mic/Line/Hi-Z Input

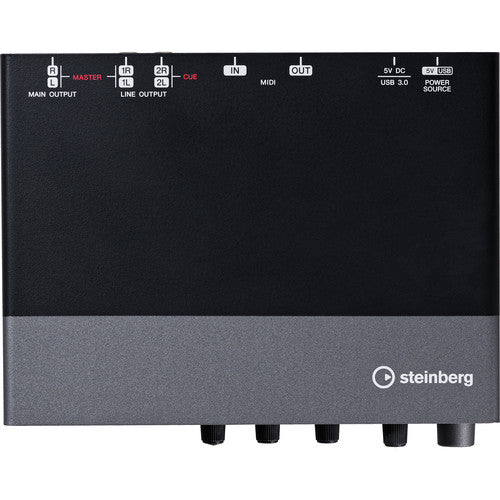

2 x 1/4" TRS Balanced Monitor Output
2 x Stereo RCA Coaxial Unbalanced Line Output
1 x 1/4" TRS Unbalanced Headphone Output
Phantom Power +48 V (Selectable on Individual Inputs)
Digital Audio I/O None
Host Connection / USB 1 x USB Type-C (USB 3.0 / 3.1 Gen 1)
MIDI I/O 1 x DIN 5-Pin Input
1 x DIN 5-Pin Output
Performance
Frequency Response Mic Inputs:
20 Hz to 22 kHz 0/-0.3 dB
Monitor Outputs:
20 Hz to 22 kHz 0/-0.2 dB
Line Outputs:
20 Hz to 22 kHz +0/-0.2 dB
Gain/Trim Range Mic Inputs:
+6 dB to +60 dB
Hi-Z Inputs:
+0.8 dB +54.8 dB
Line Inputs:
-10 dB to +44 dB
Max Input Level Mic Inputs:
+6 dBu (Balanced)
Hi-Z Inputs:
+9 dBV (Unbalanced)
Line Inputs:
+22 dBu (Balanced)
Max Output Level Line/Monitor Outputs:
+12 dBu (Balanced)
Headphone Output Power 15 mW per Channel
Impedance Mic Inputs:
6 Kilohms (Balanced)
Hi-Z Inputs:
1 Megohms (Unbalanced)
Line Inputs:
12 Kilohms (Balanced)
Outputs:
150 Ohms (Balanced)
Headphone Outputs:
40 Ohms (Unbalanced)
Dynamic Range Inputs:
102 dBA
Outputs:
106 dBA
THD+N Mic Inputs:
0.0035%
Outputs:
0.002%
Digital Audio
Sample Rates Up to 192 kHz
Bit Depths Up to 32-Bit
Compatibility
OS Compatibility Windows 7 / 8.1 / 10
macOS 10.12 or Later
iOS 10 or Later
Processor Requirement Mac:
2 GHz Intel Core i3
PC:
2 GHz Intel Core i3
PC:
2 GHz AMD
RAM Requirements 2 GB
Storage Requirements 1200 MB
Minimum Display Resolution 1280 x 800
Internet Connection Required for Registration, Software/Driver Download
Power
Power Requirements AC/DC Power Adapter (Not Included), USB Bus Power
Physical
Operating Temperature 32 to 104°F / 0 to 40°C
Dimensions 7.8 x 6.26 x 1.85" / 19.8 x 15.9 x 4.7 cm
Weight 2.4 lb / 1.1 kg
Packaging Info
Package Weight 3.55 lb
Box Dimensions (LxWxH) 10.8 x 8.1 x 4.2"

In the Box

  • Steinberg UR24C 2x4 USB Gen 3.1 Audio Interface
  • USB 3.0 cable (3.1 Gen 1, Type-C to Type-A, 3.3' / 1.0 m)
  • • CUBASE AI Download Information
  • Additional Software License Information
  • Limited 1-Year Warranty
